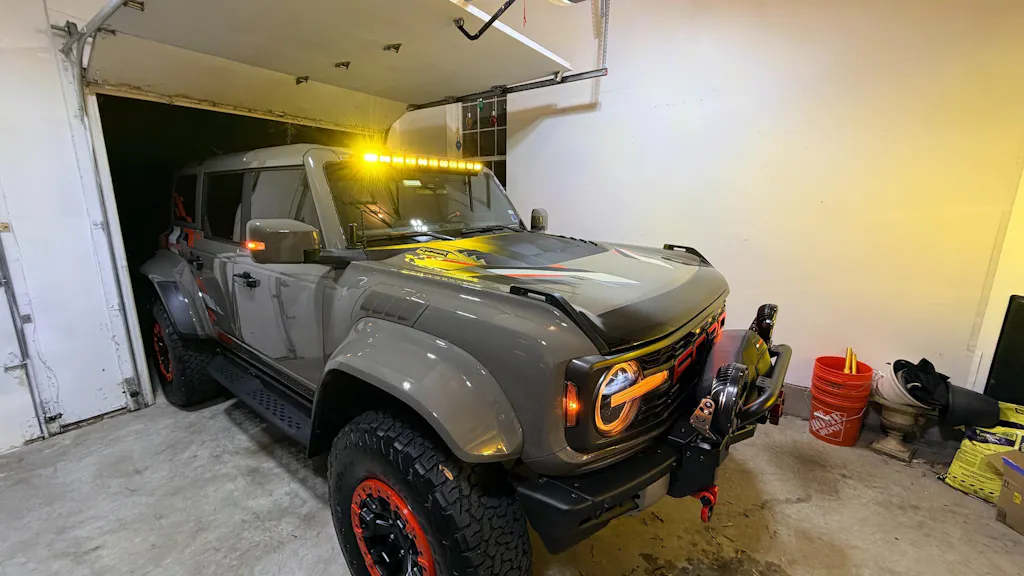

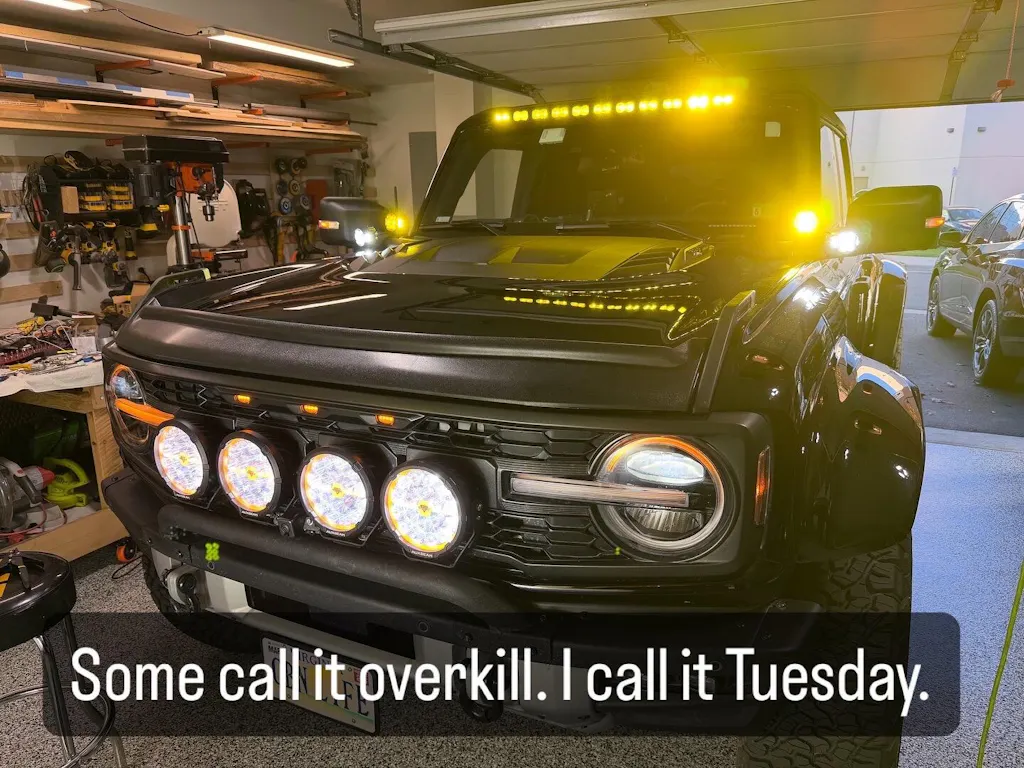

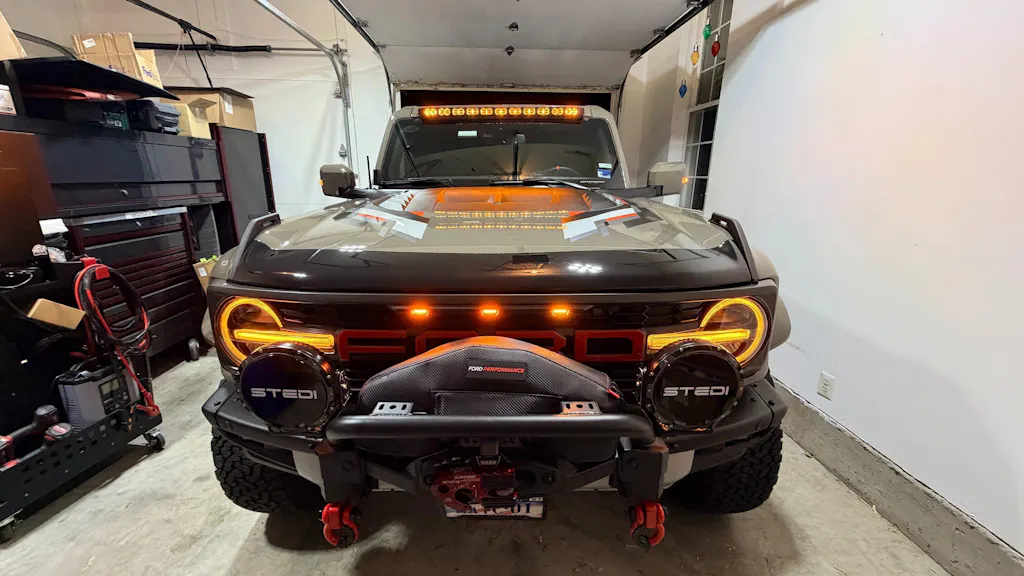

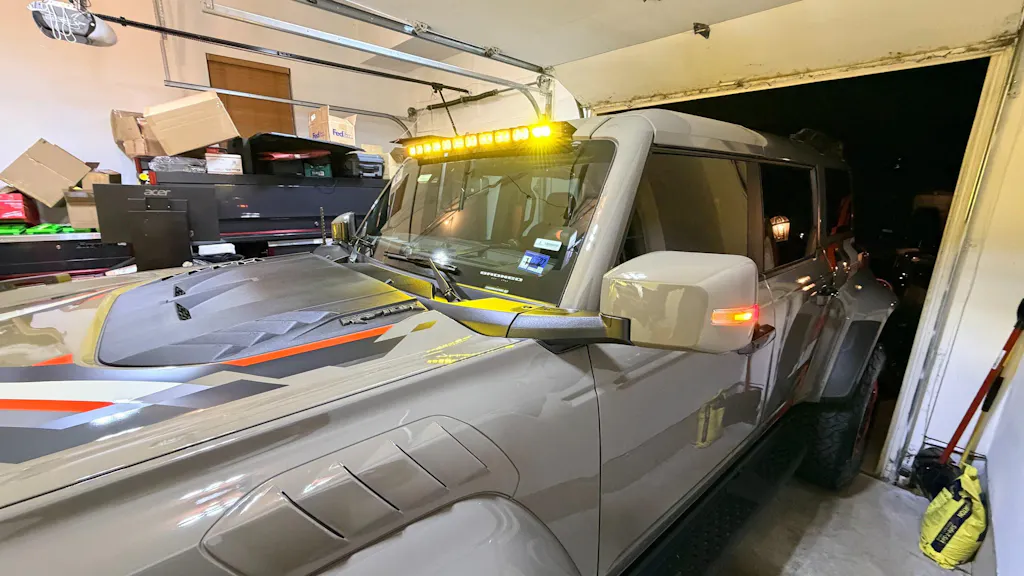

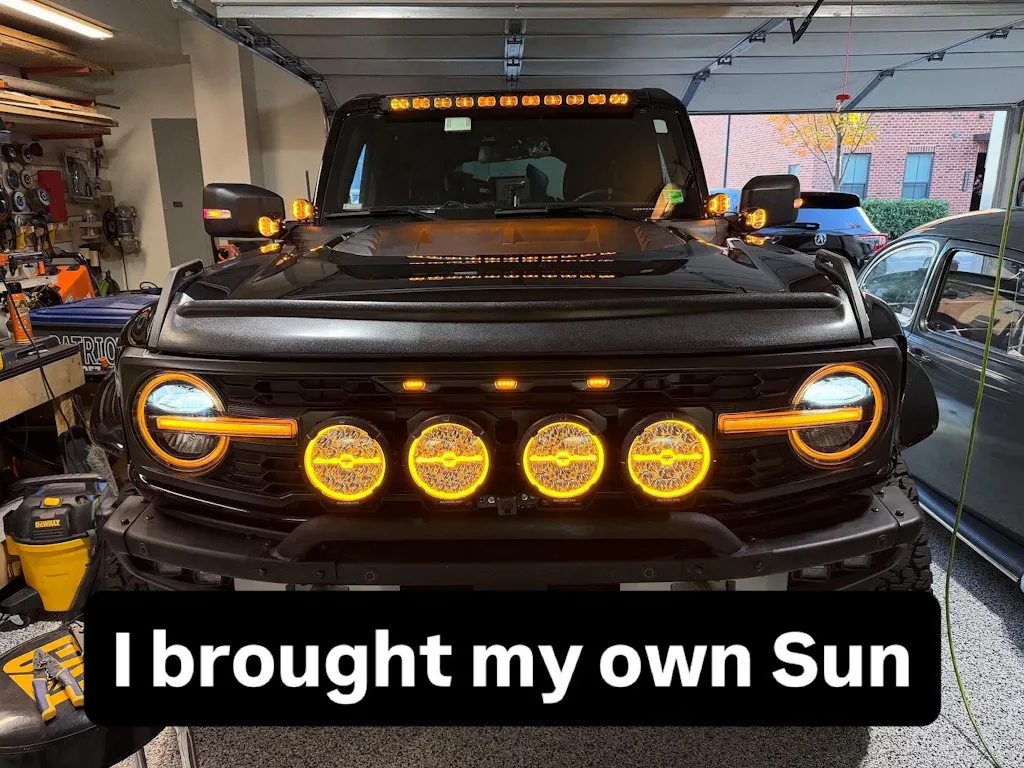

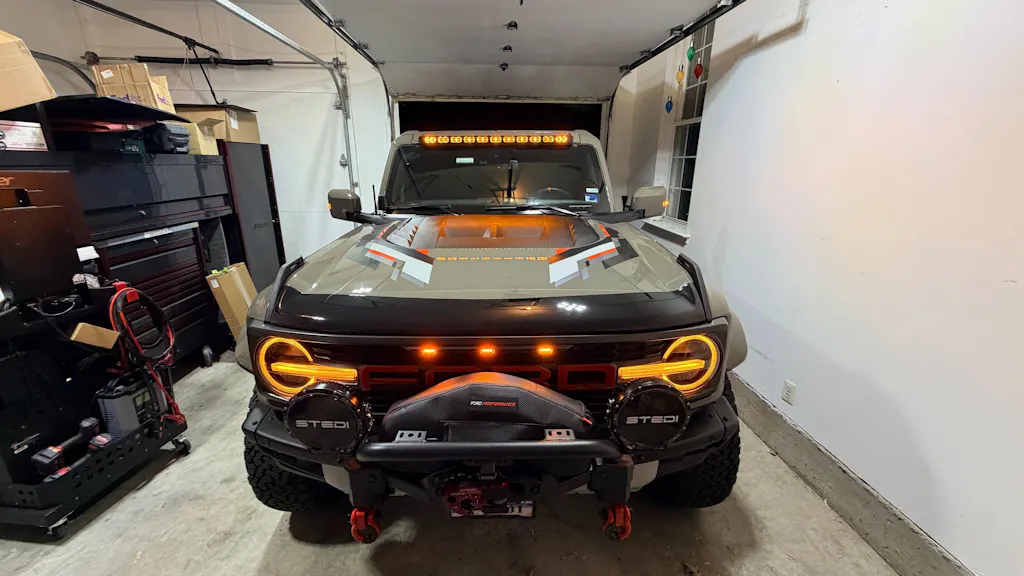

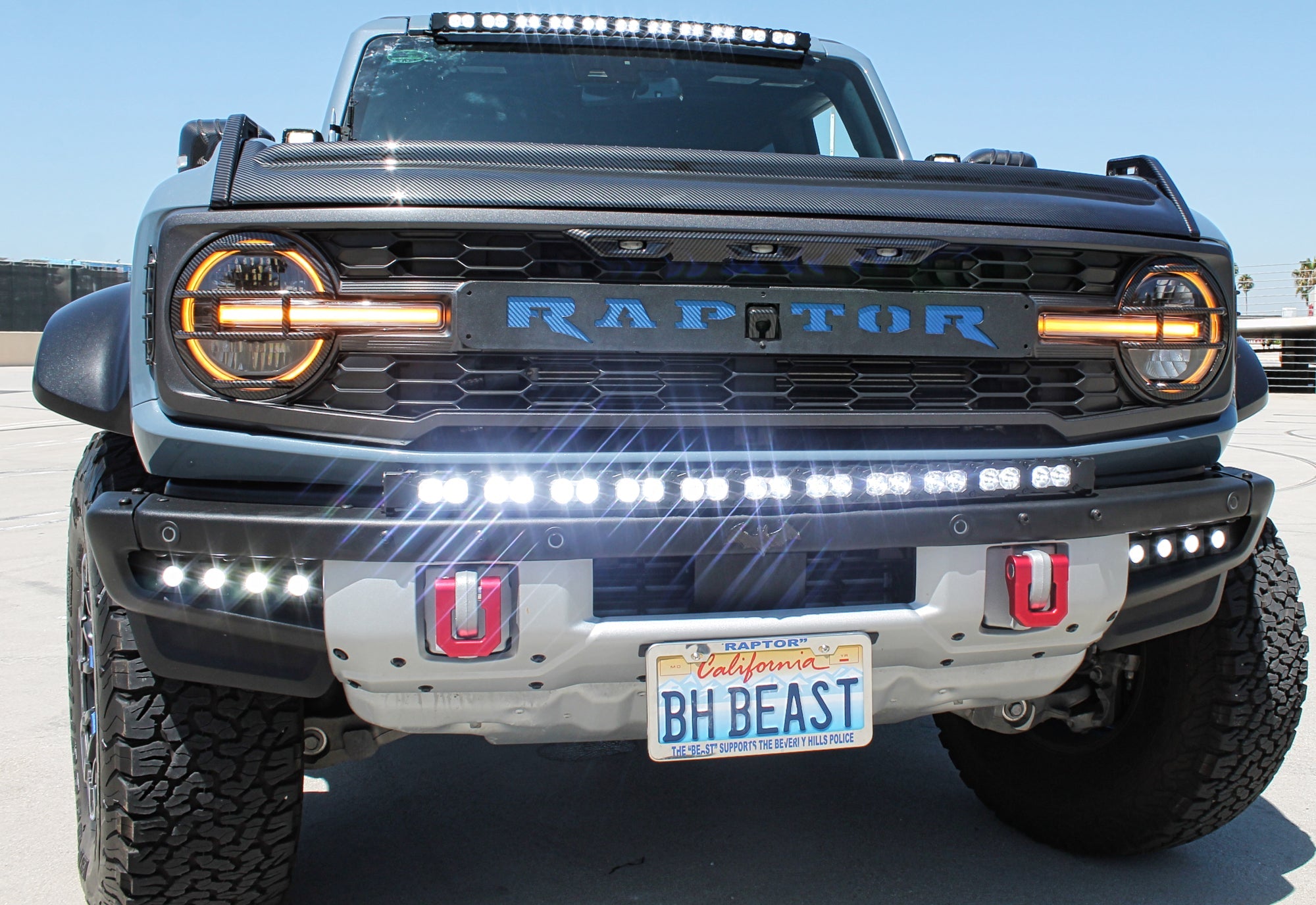

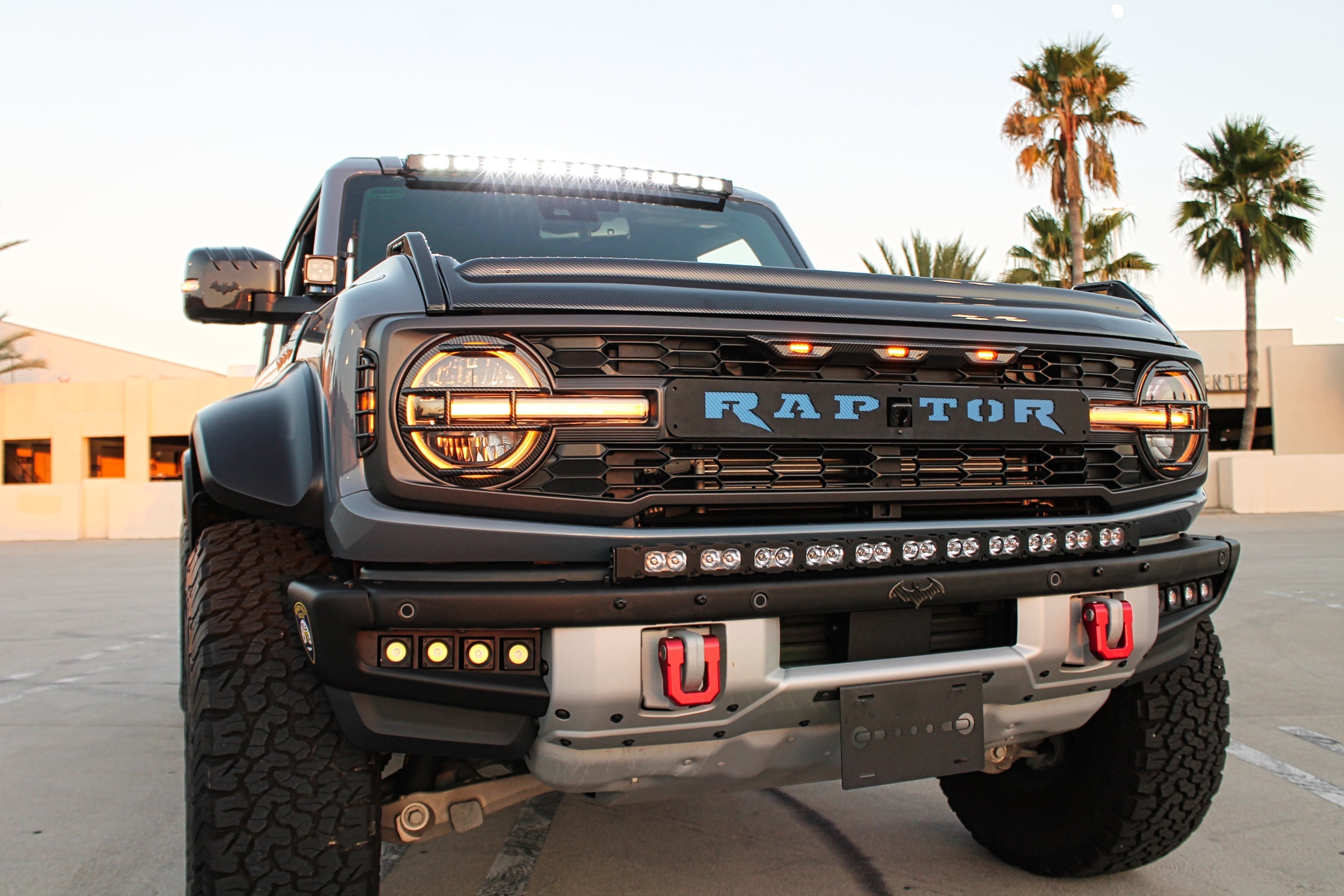

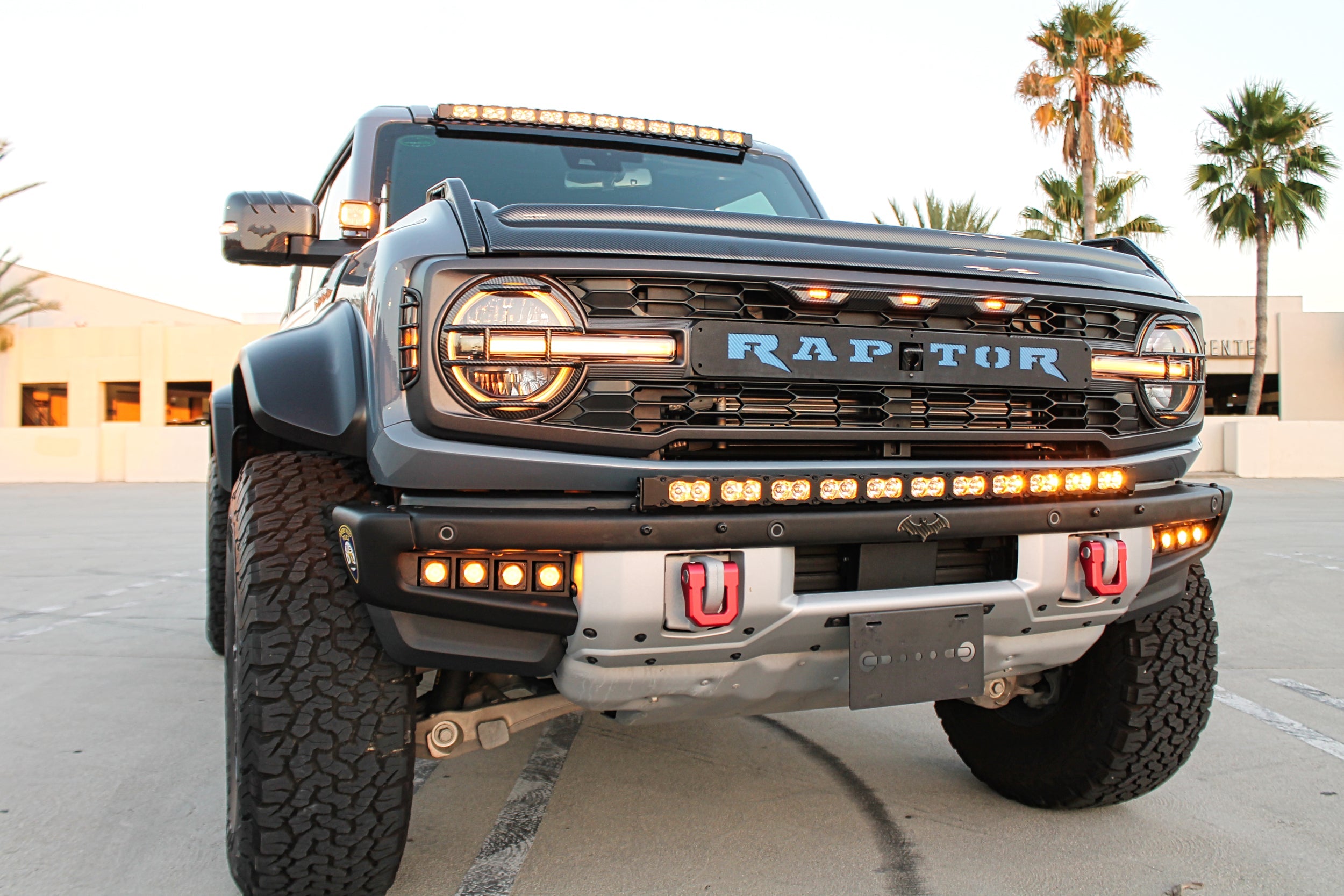

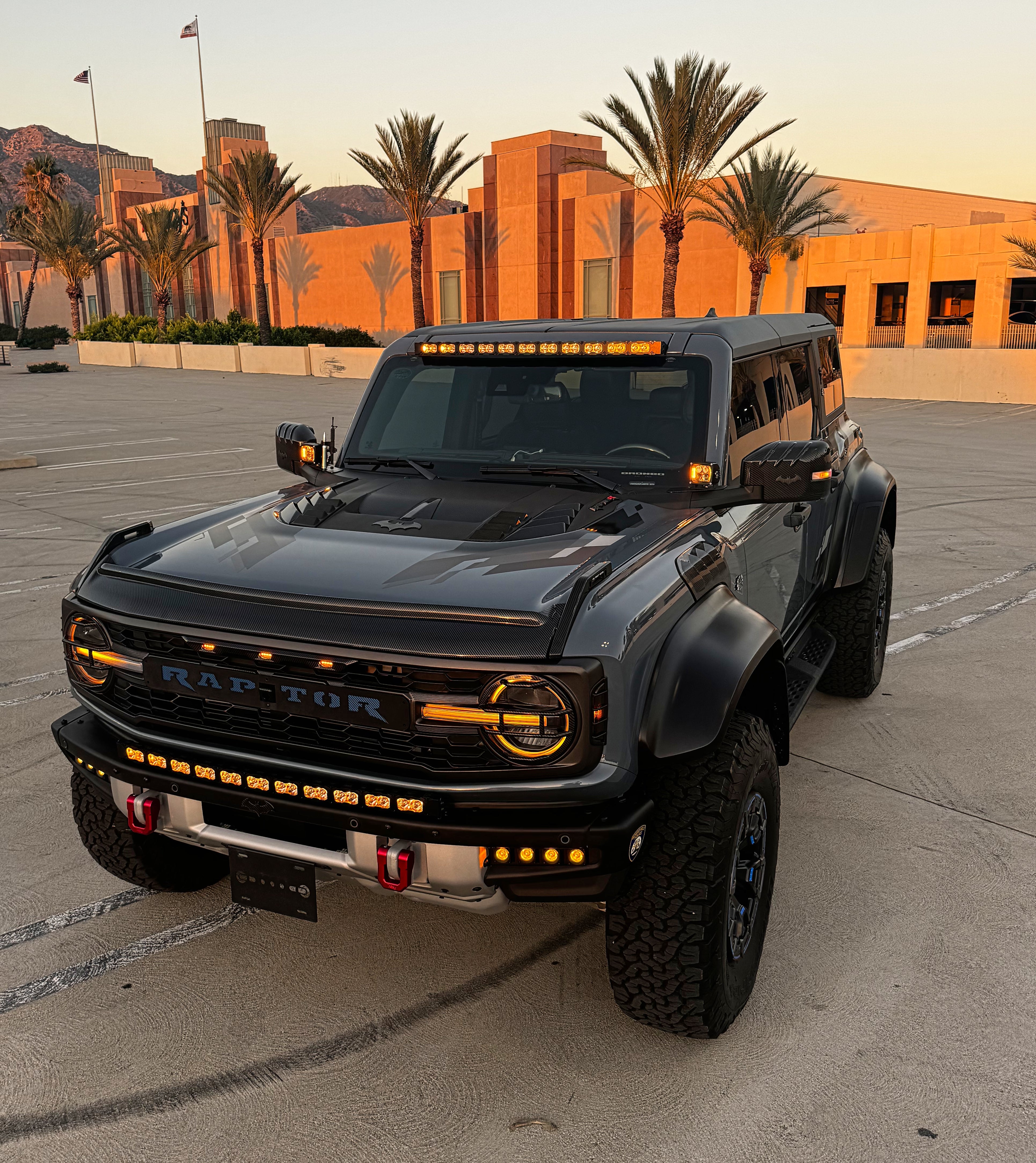

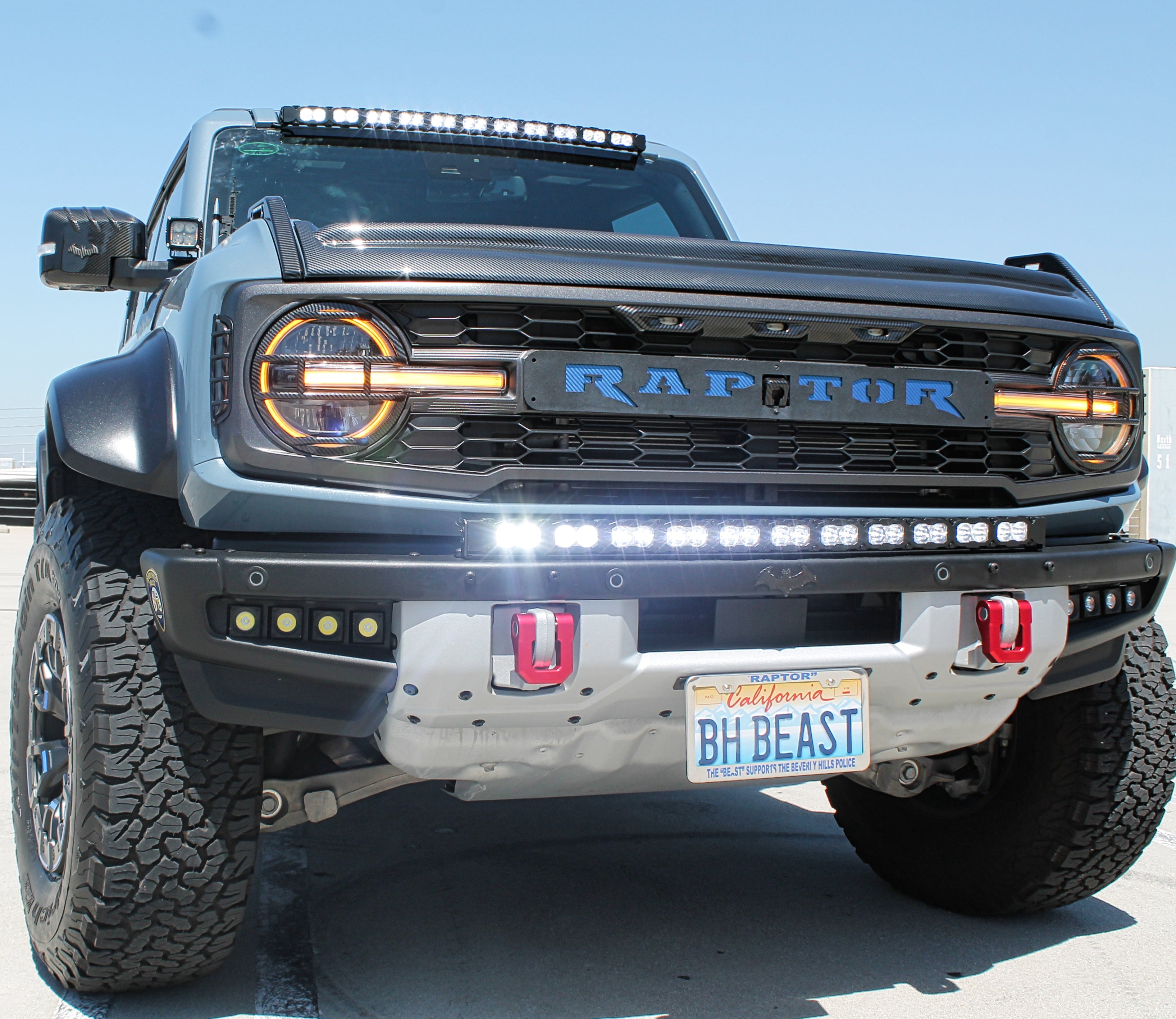

2022+ Ford Bronco Raptor Roof Light Bar PRO
What's in the Box
- (1) 40in curved light bar PRO
- (2) metal brackets
- All mounting hardware included
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty
Fits: 2022–2026 Ford Bronco Raptor
- Curved LED light bar, stays slim to the roof
- Fits hard and soft top

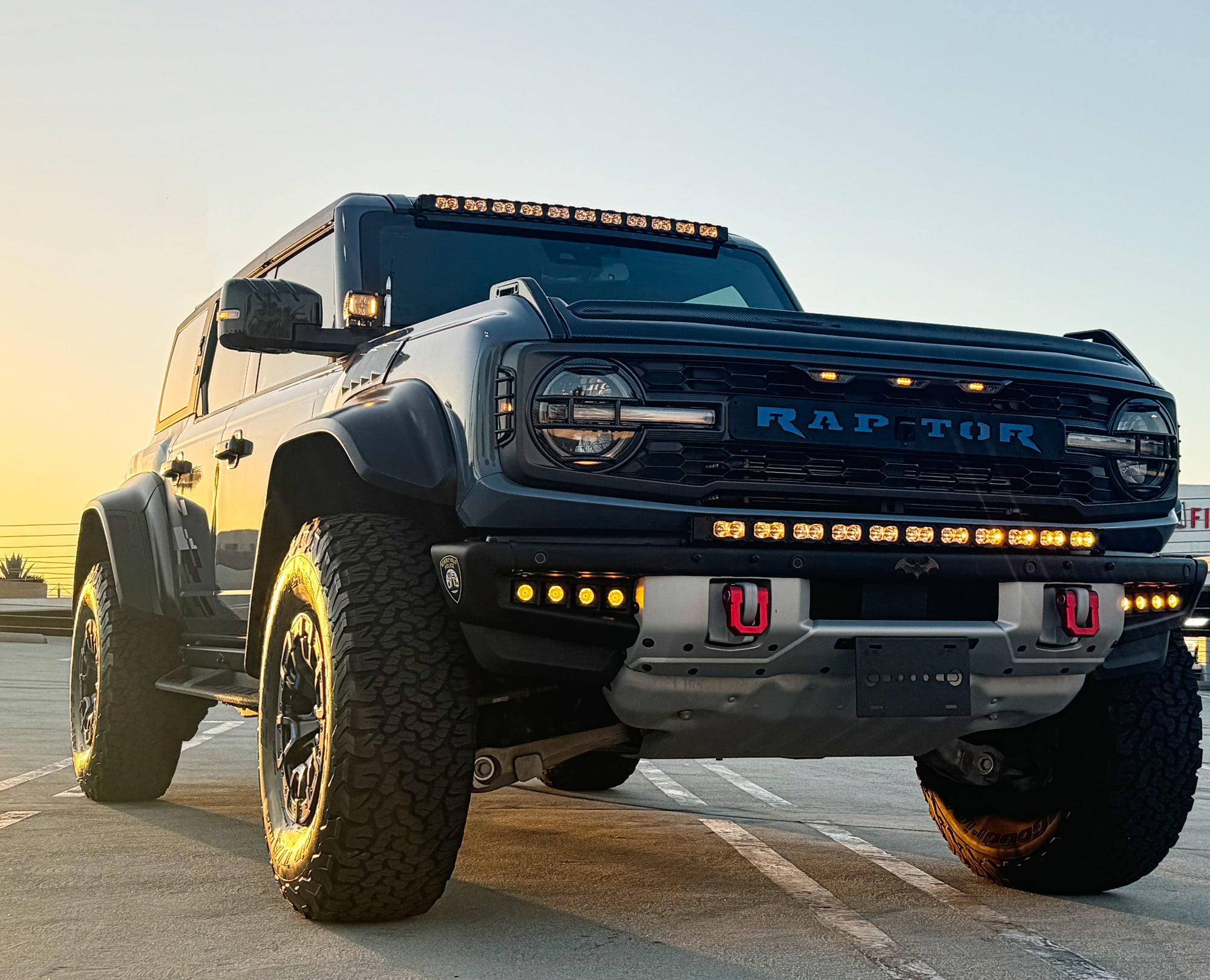

- Metal bracket is powder coated black
- Easy install, reuses factory caps
- We have tried to eliminate as much wind noise as possible. Designed as close to the windshield as possible. However, as with all roof light bars, some wind noise is expected.
- **PLEASE NOTE** If you will be using AUX switches, there is only (1) AUX power wire that is factory behind the visor. You will need two (2) AUX switches and therefore it needs to be connected to the main AUX in the engine bay. This light bar has 8ft of wire.

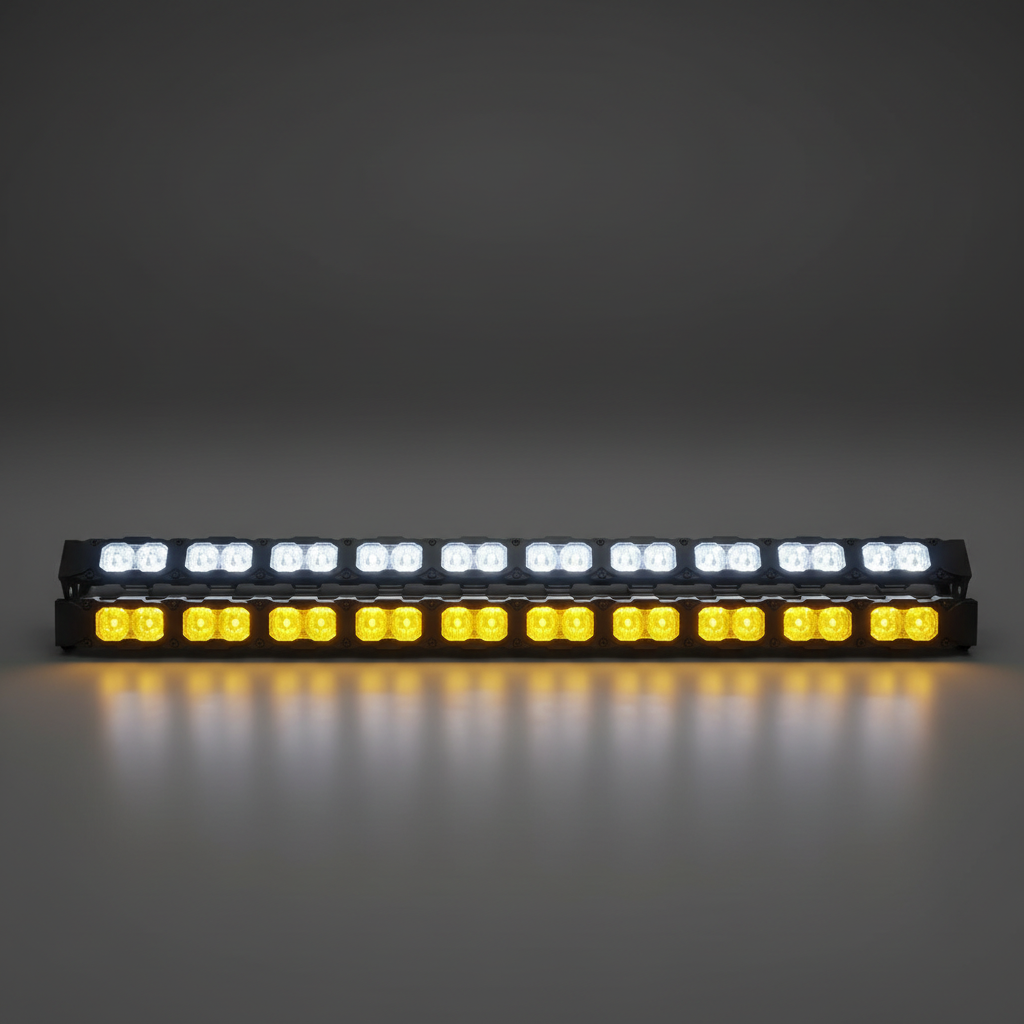

CHOOSE LIGHT OUTPUT COLOR:
The PRO light bar uses a Combo Pattern, blending spot and driving optics for a balance between distance and width.

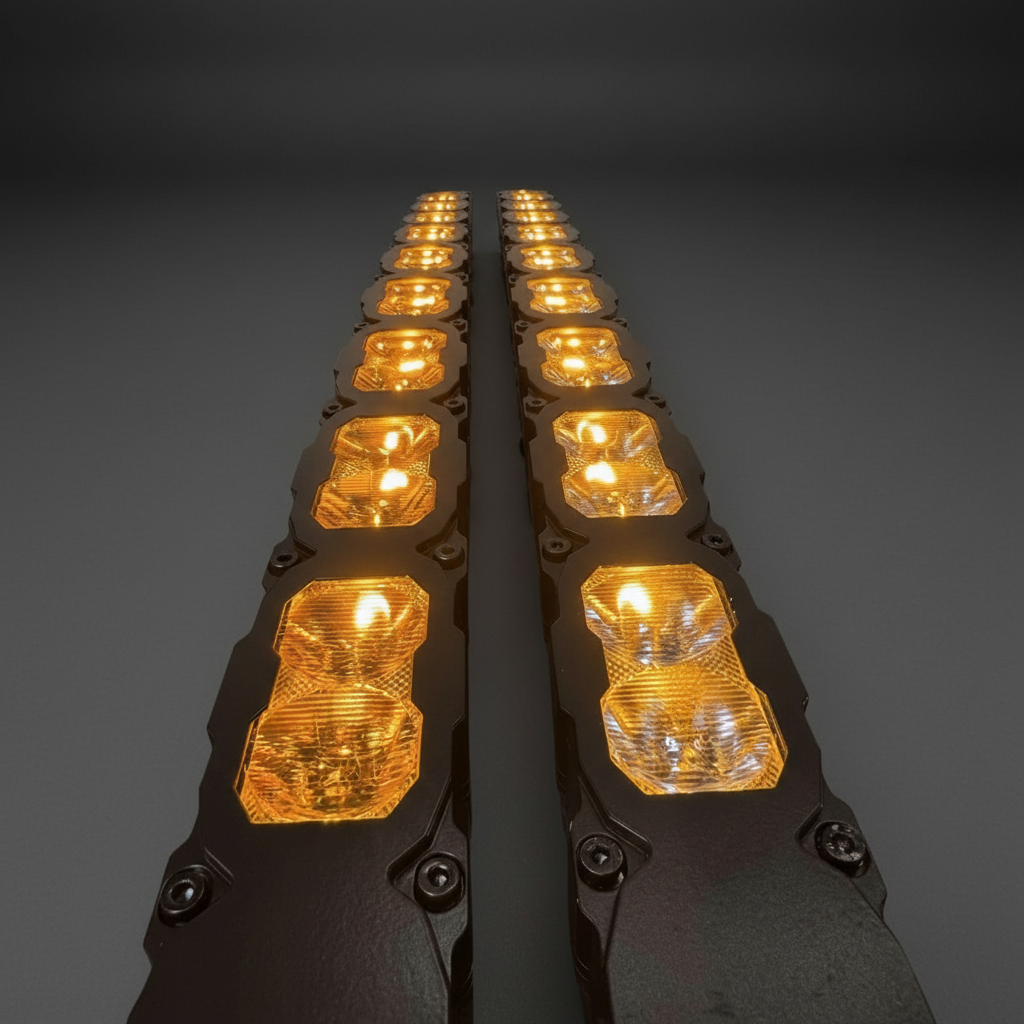

Every PRO bar is dual function — one main light and amber DRL (daytime running light) backglow.
Option 1 — White + Amber DRL
- White LED — Super bright, crisp white beam with plenty of light for any adventure. Off-road use only — the white beam blinds oncoming traffic and isn't street-legal.
- Amber DRL — A daytime running light you can run day or night. Doesn't give off much light — just a bold amber backglow that makes your vehicle stand out on the road. Street-legal — won't blind oncoming traffic, so you can run it anywhere.
Option 2 — Yellow + Amber DRL
- Yellow LED — Cuts through dust, fog, snow, and rain far better than white light. Ideal for poor conditions. Off-road use only — the yellow beam blinds oncoming traffic and isn't street-legal.
- Amber DRL — A daytime running light you can run day or night. Doesn't give off much light — just a bold amber backglow that makes your vehicle stand out on the road. Street-legal — won't blind oncoming traffic, so you can run it anywhere.

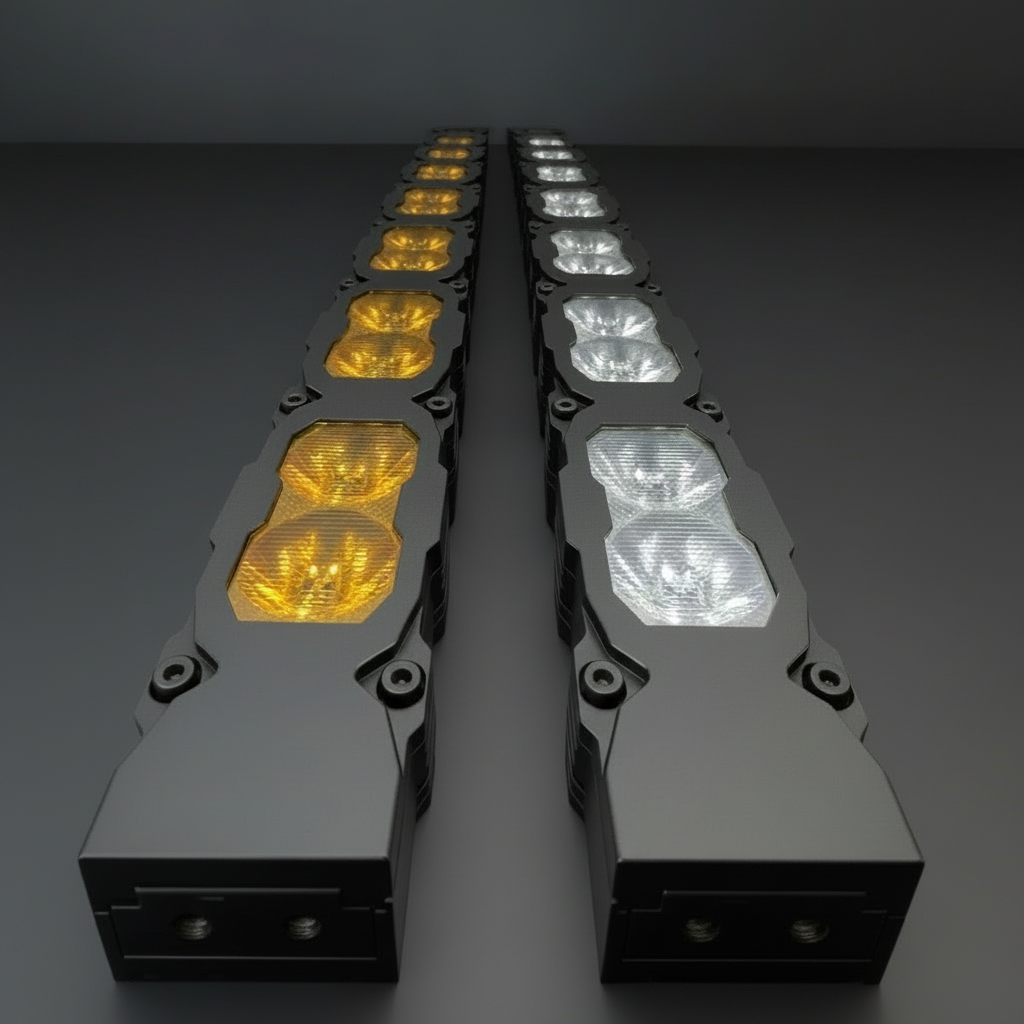

BUILD QUALITY:
- Uses a TIR (Total Internal Reflection) lens, which is different from our regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance

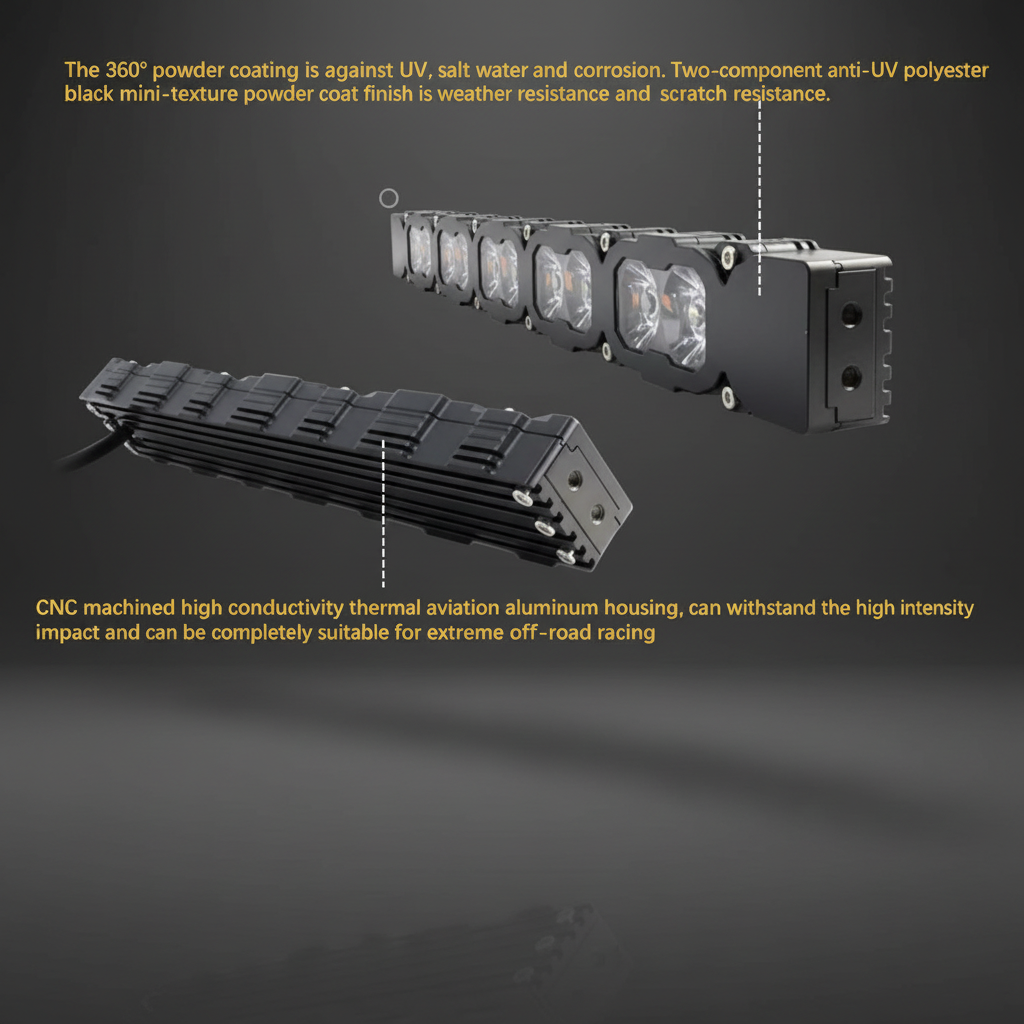

- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
- Rated for a 50,000 hour lifespan
40in PRO Light Bar
| Beam Pattern | Spot & Driving |
| Theoretical Max Power | 220 watts |
| Actual Power | 125 watts |
| Voltage / Current (Main) | DC 12V / 10.42A |
| Voltage / Current (Backlight) | DC 12V / 0.25A |
| Theoretical Max Luminous Flux | 24,024 lm |
| Measured Flux (without lens) | 15,224 lm |
| Measured Flux (with clear lens) | 12,108 lm |
| Measured Flux (with yellow lens) | 9,505 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 22 pcs |
| Product Size (L × W × D) | 38.90 × 1.89 × 1.00 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
