- Product Description
- Light Bar Specs
- Shipping & Warranty
- Fits RAM 2500/3500, years 2019 2020 2021 2022 2023 2024
- The kit is a complete bolt on using factory openings and hardware
- Metal bracket is powder coated black
- Must remove the grille
-
**PLEASE NOTE** there is minimal trim of rubber/plastic cowl to fit the bracket. Make sure to reference the installation video for full detail. Please free to reach out if you need more guidance.
👍Our light kits are for off-road use only.
Choose your light bar color:
1) White LED -- Up to 11,760 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.
2) Amber LED -- Up to 5,500 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.
3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Full in-depth video describing our lights bars CLICK HERE
WHAT'S INCLUDED?
(1) 30in light bar - SLIM
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness for this light bar kit.
- The light bar has 6ft of wire which is enough to reach AUX wires if your truck has them. If not, you need to purchase a generic wiring harness from Amazon/Ebay or create your own.
- We sell a wireless wiring harness that delivers a clean, hassle-free install—no need to run wires into the cab.
INSTALLATION INSTRUCTIONS
30in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 576watts
- Voltage/current DC12v/6.3A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
Amber:
- Beam Pattern Spot
- Theotetical max power 109watts
- Actual power 56watts
- Voltage/current DC12v/4.7A
- Theoretical max luminous flux 8,680 lm
- Measured luminous flux (without lens) 5,740 lm
- Measured luminous flux (with lens) 4,133 lm
- LEDs type CREE XP - E2 Amber
- Temperature
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 76watts
- Voltage/current main DC12v/6.3A
- Voltage/current backlight 4.3W/0.36A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
I end results look great. Definitely not just a plug and play. Your gonna have to do some trimming on the inside portion of the lower grill bezel. And I fabricated a mounting plate out of black high density plastic to mount the wireless M/R controller. I would definitely purchase again. Just be prepared to do some trimming!!
Thank you for your honest feedback. I'll make sure that is more clearly stated under the listings for future customers. I appreciate you pointing this out. We always aim for a quick install light kit, but once in a while factory has weird placements of the rubber pieces and the only way around it is to trim it down.
I absolutely love it that you got it to work yourself and were able to make a plate for the wireless harness. You should have received 2 'L' brackets with your wireless 2.0 to be able to mount it somewhere in the engine bay. Was it easier to do it with a straight plate vs the provided L brackets? Wondering if that is something we should look at to provide or change.
Would love to see your truck. Thank you for the feedback again

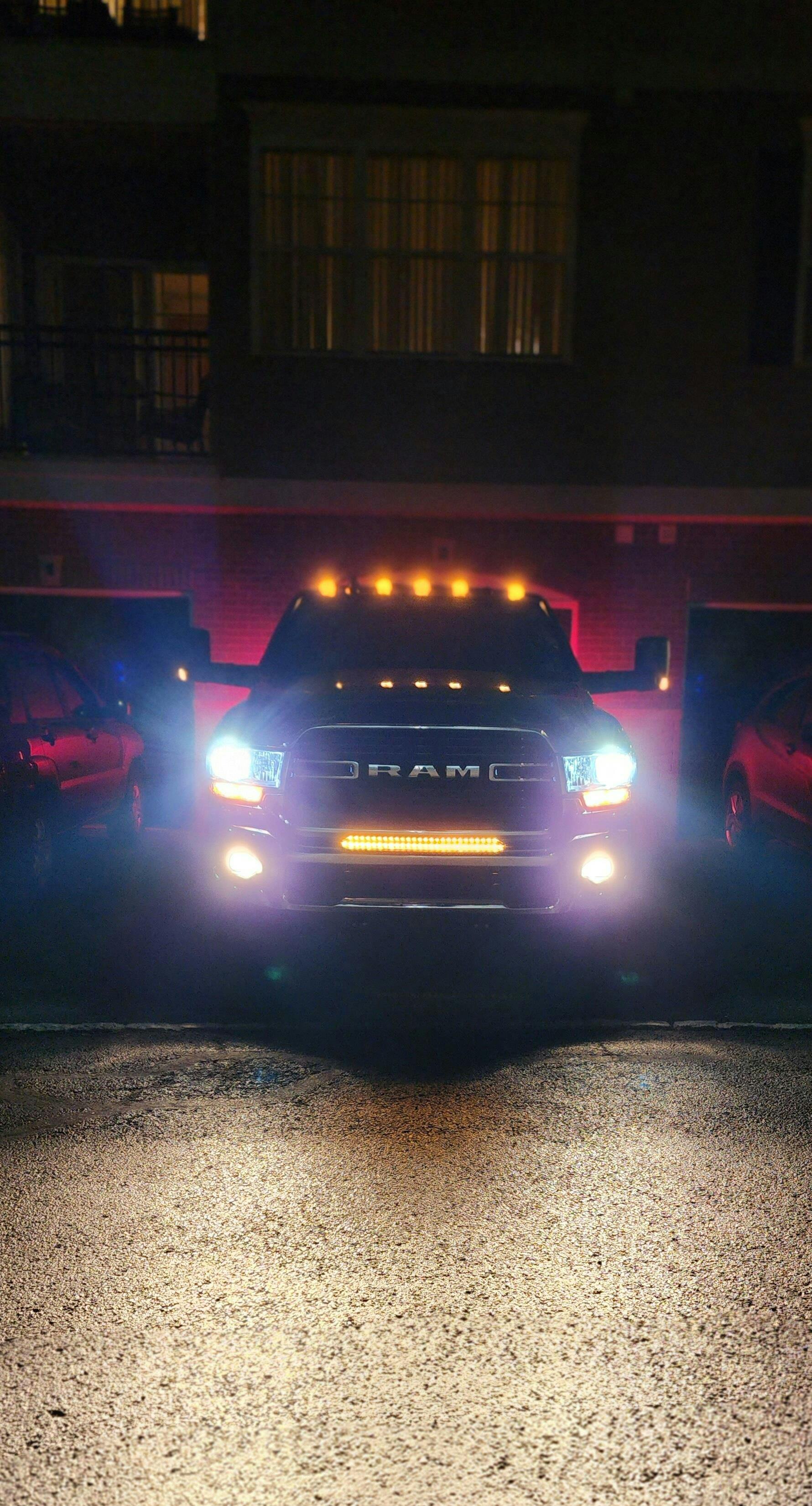

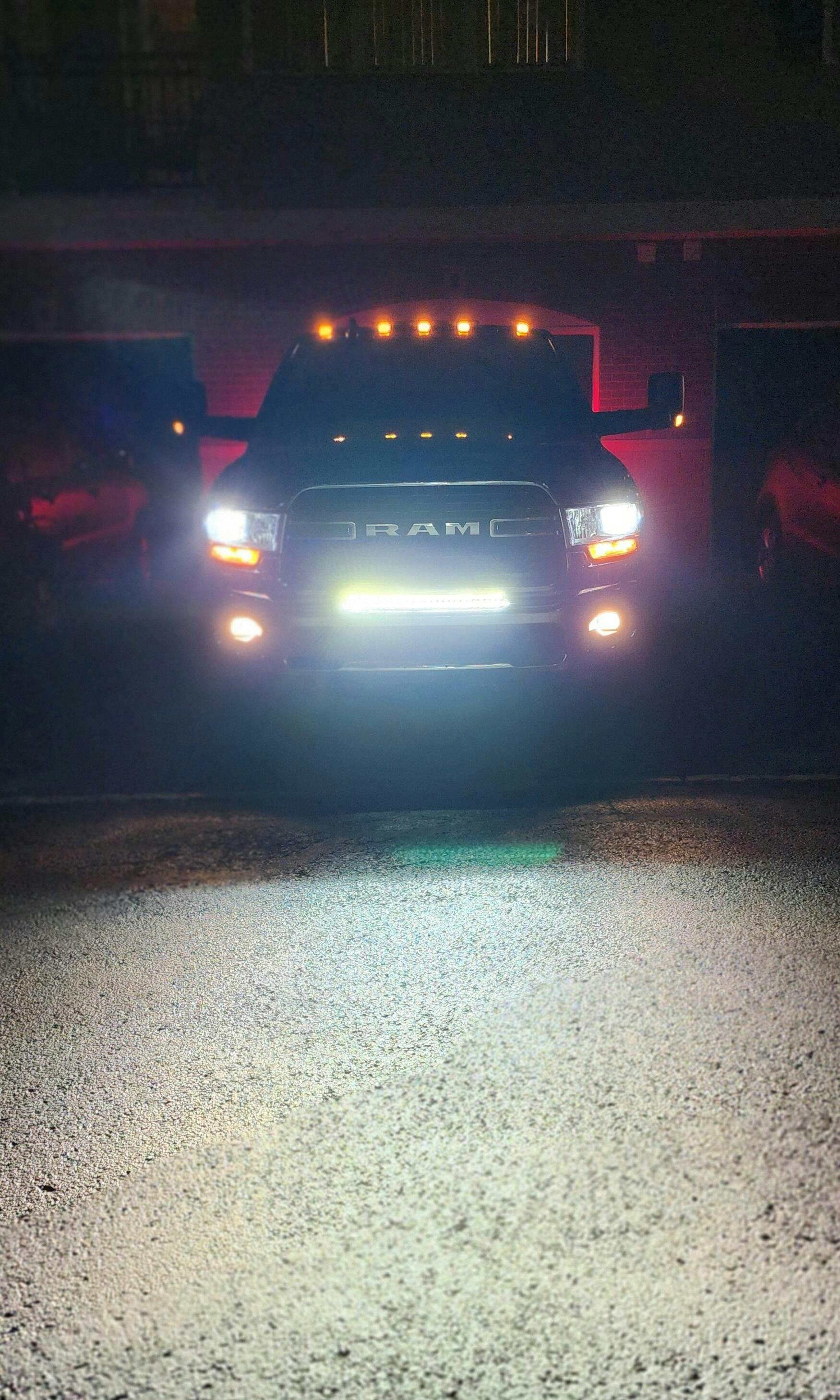

Just installed this today on me ‘24 Ram 2500. The install video below walks you through step by step for an easy install. My truck came with the factor aux panel, so wiring was easy. One switch controls the white, another the amber. Love it so far especially how hidden it is until it’s on. No part of the molding blocks the light it fits perfect in the game on the 24 rams. Looking to get the other kit soon that fits below, since this came out so well.

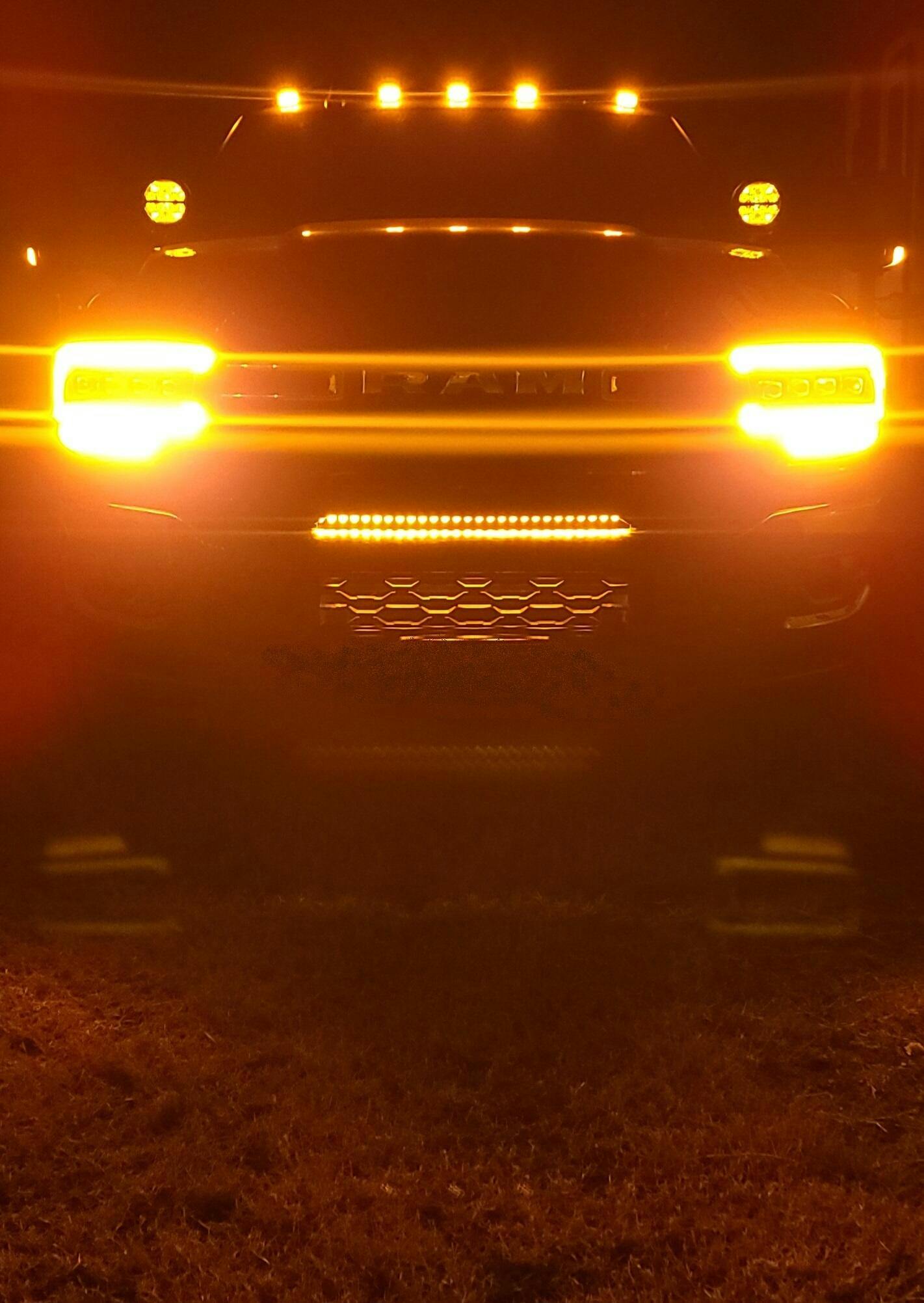

Easy to install and wire up love the look of the amber at night and light bar is great added fog light. What i use it for

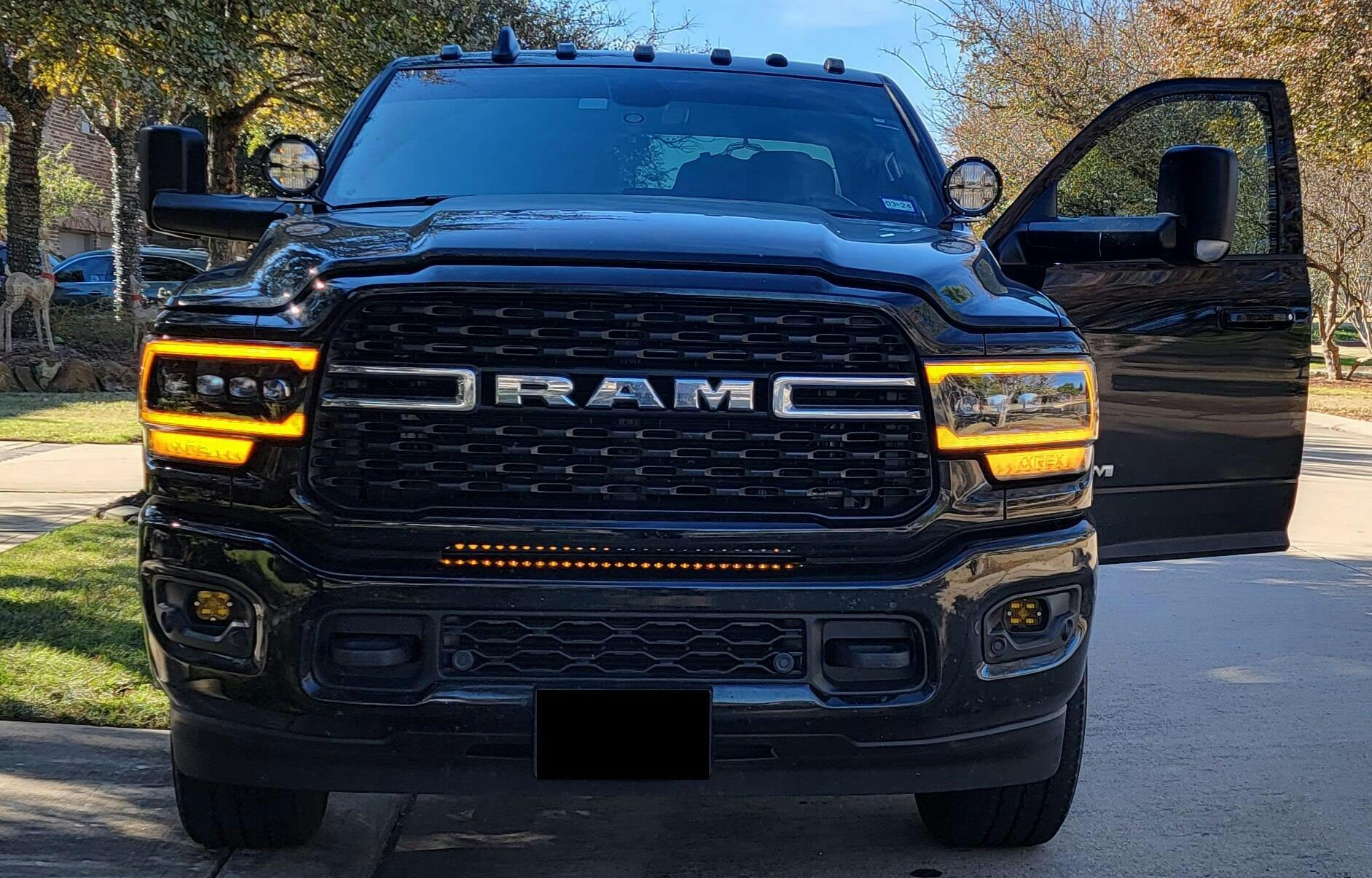

2022 Power wagon. I’ve always wanted an amber light bar that breaks up the all black front grill on my truck. Very happy with the quality and appearance of this product. The grill is not identical to the standard ram 2500 and needed a little bit of playing around to seat perfectly, but I’m happy with the end result! Highly recommended product. Also really like the new wireless controlled from MandR, so nice to be able to set it up with DRLs so I’m not manually engaging all the time.
Fit good. Looks good. Easy to follow directions. Recomend it.
