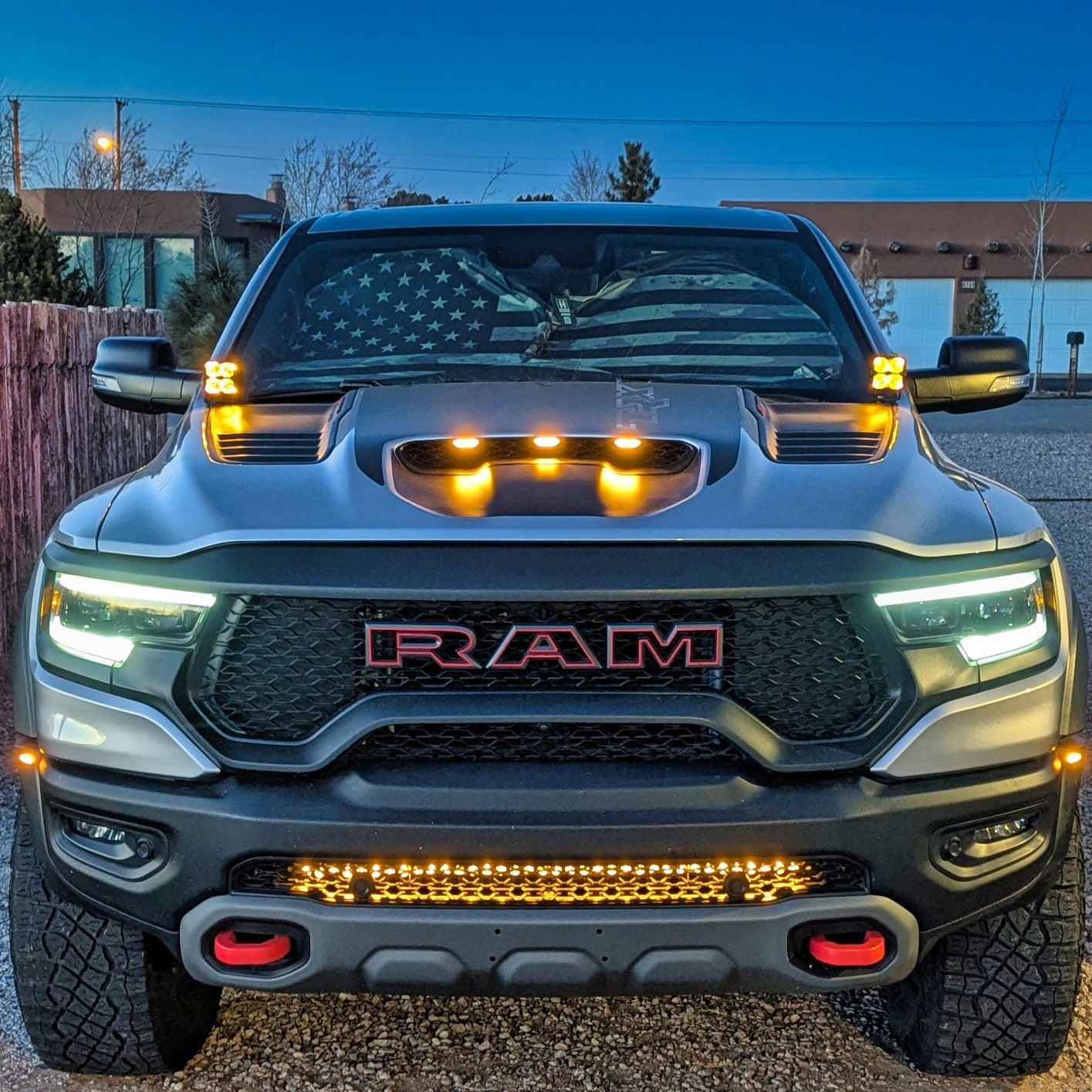

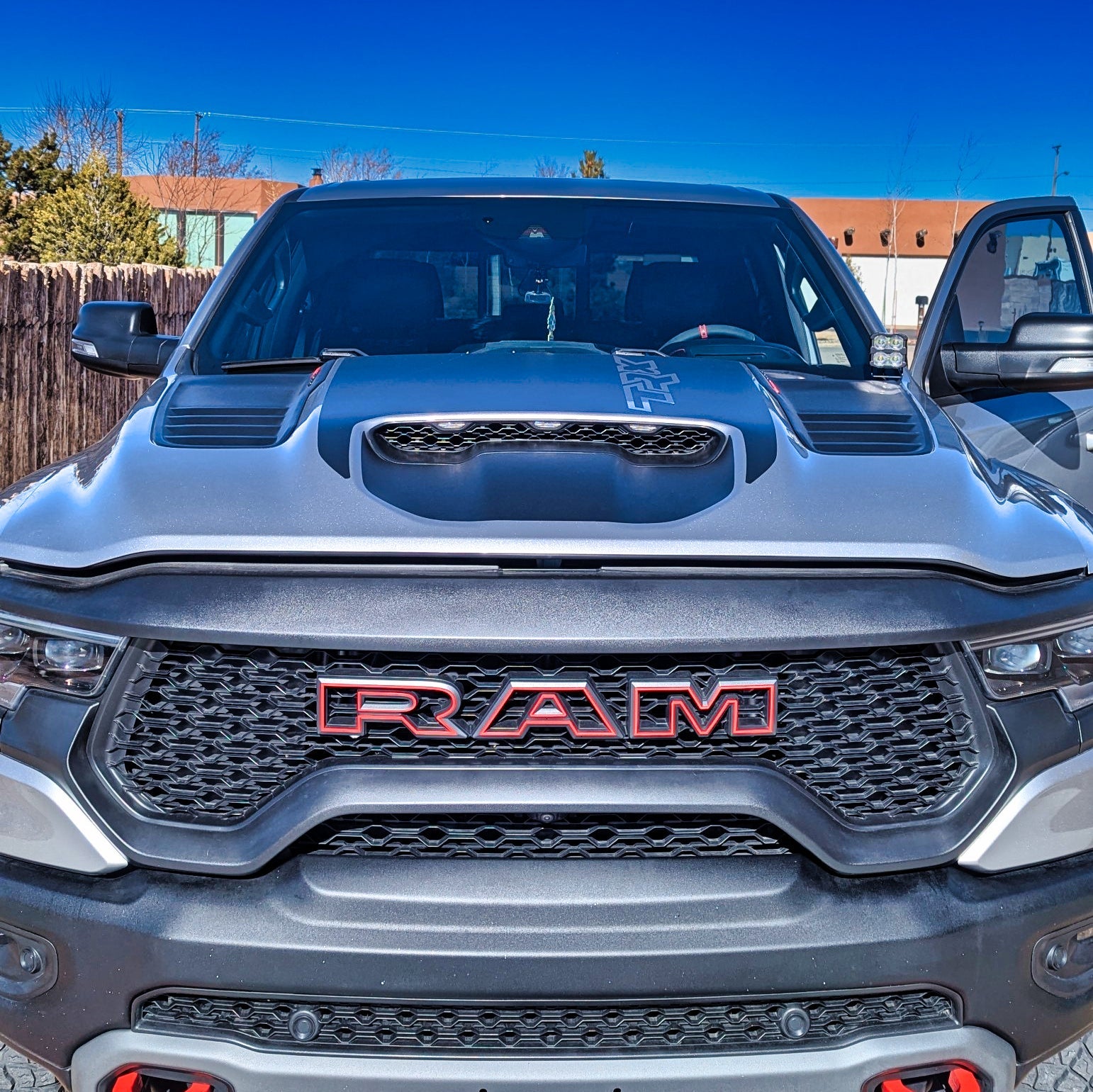

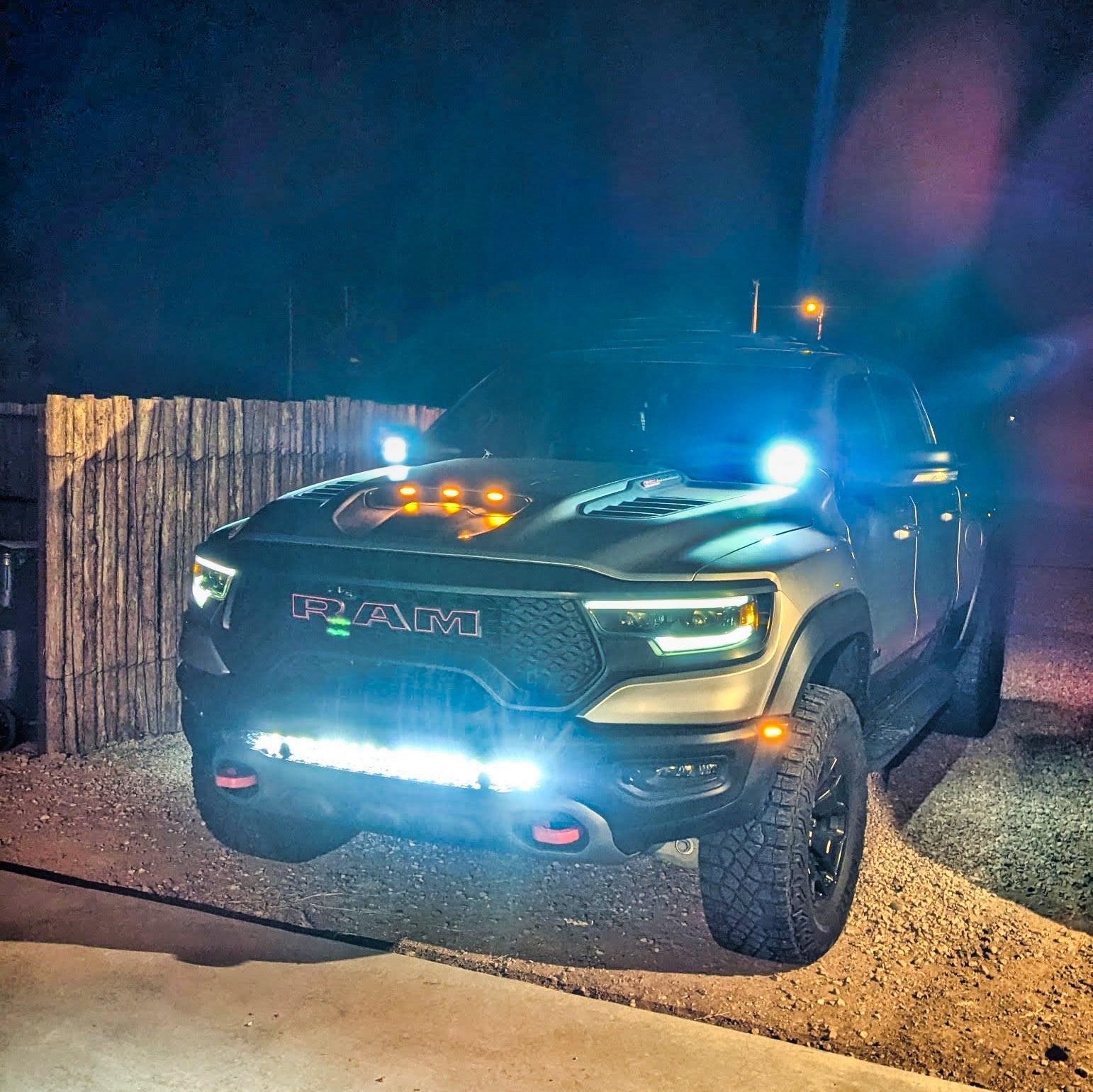

2019-24 RAM 1500 TRX Ditch Lights PRO
What's in the Box
- (2) 40w LED PODs PRO
- (2) metal brackets
- (1) wiring harness to bridge 2 pods together
- All mounting hardware included
- *Brackets-only orders include just the mounting brackets — no pods or wiring harness.
Need a shop to install it? Find a trusted installer near you →
Off-road Use Only
Bolt On, No Drilling
Lifetime Warranty

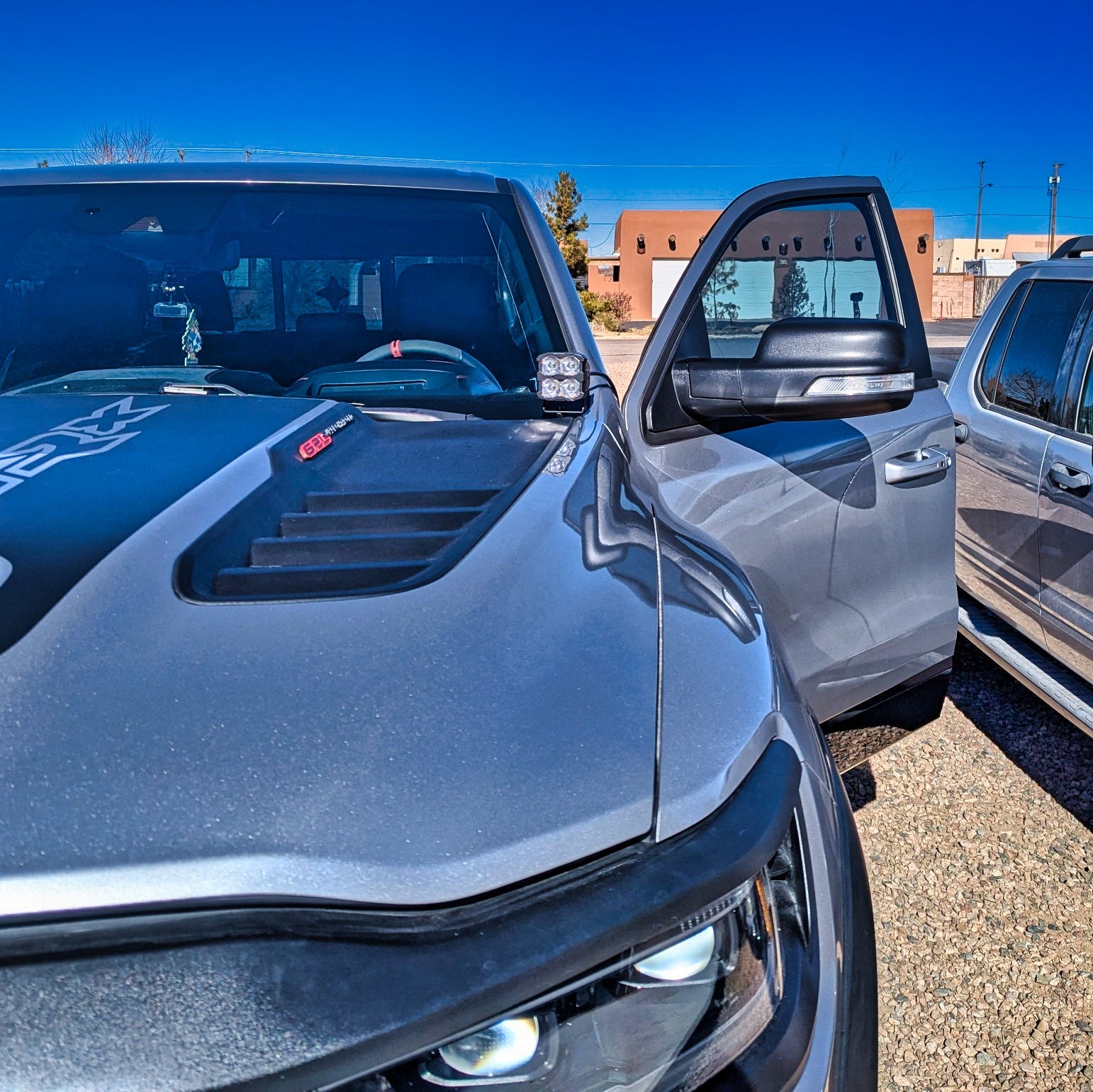

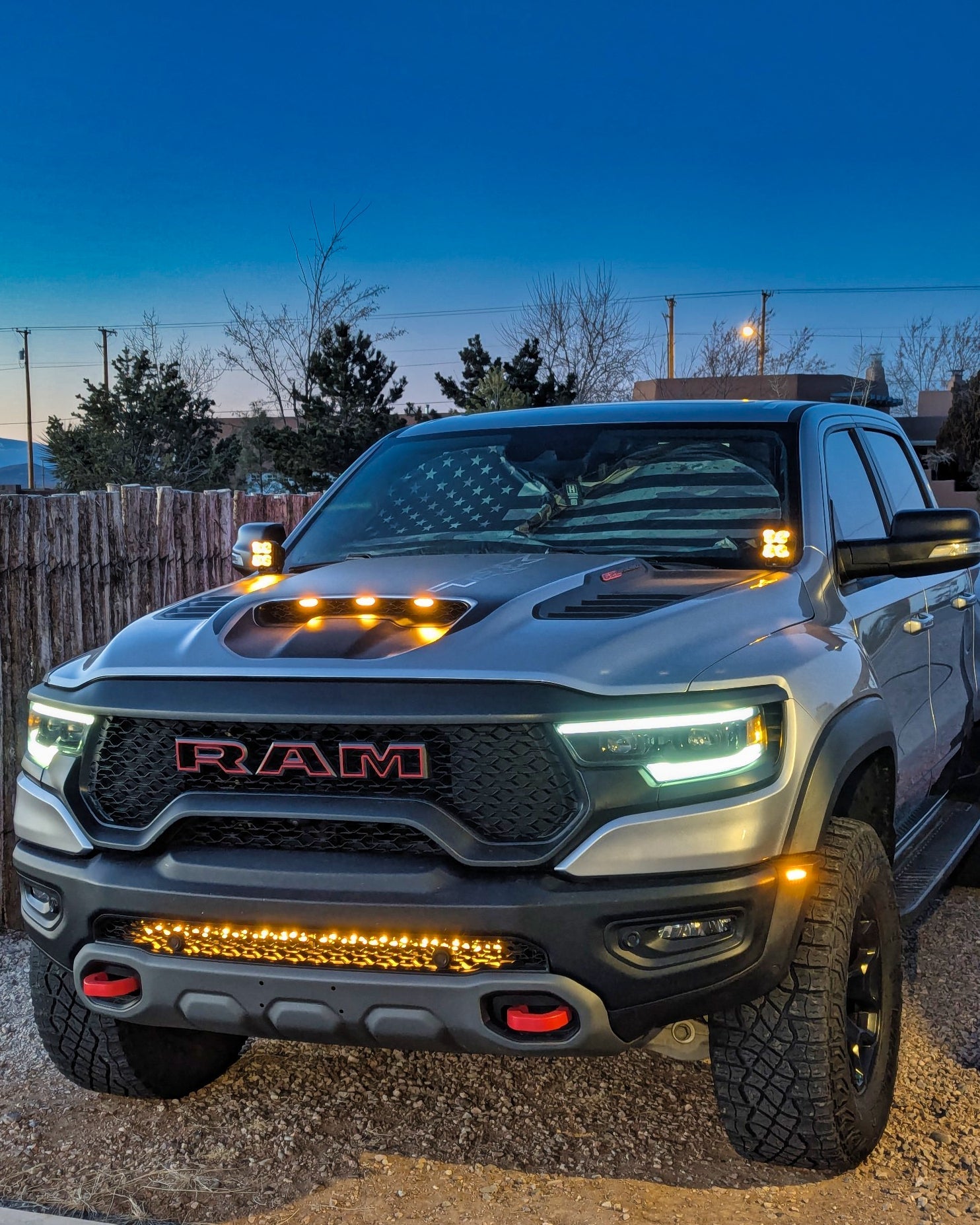

Fits: 2019–2024 RAM 1500 TRX

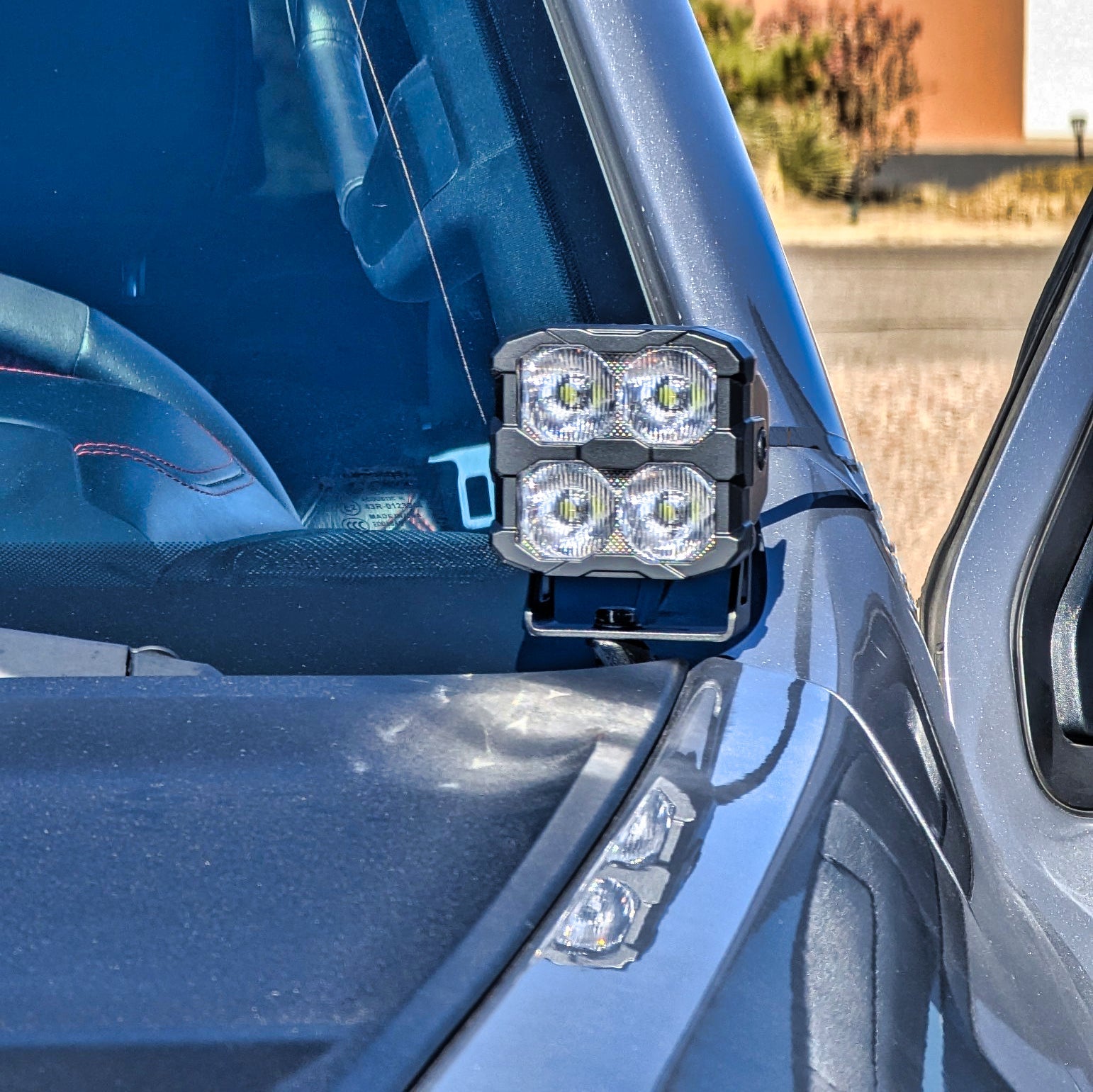

- Low profile
- Fully adjustable pods — aim them straight ahead for extra light down the trail, or angle them outward for a wider coverage area to light up the sides and spot obstacles, animals, or drop-offs in the ditches
- Easy bolt-on install — no cutting or drilling required
- Hood opens and closes freely
- Doesn't interfere with windshield wipers
- Metal bracket is powder coated
BUILD QUALITY:

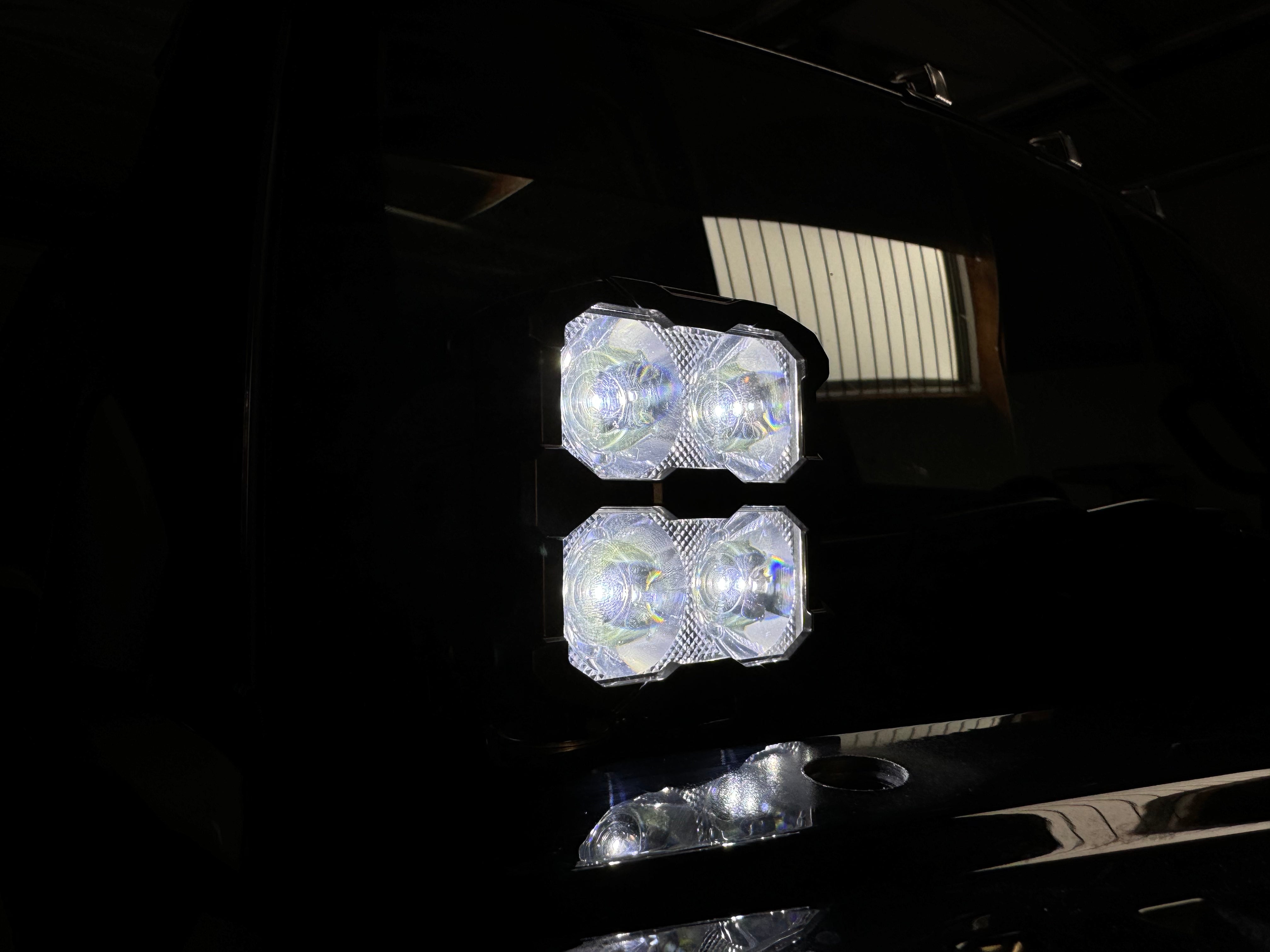

- Uses a TIR (Total Internal Reflection) lens, which is different from conventional optics that lose light internally and produce glare. The TIR lens collects all of the light from the LED and directly leads it to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
- Rated for a 50,000 hour lifespan
⚠️ Brackets Only – No Lights: M&R does not guarantee fitment with other brand LED pods. Brackets are designed for 3.2in pods. All bracket-only sales are final — no returns.

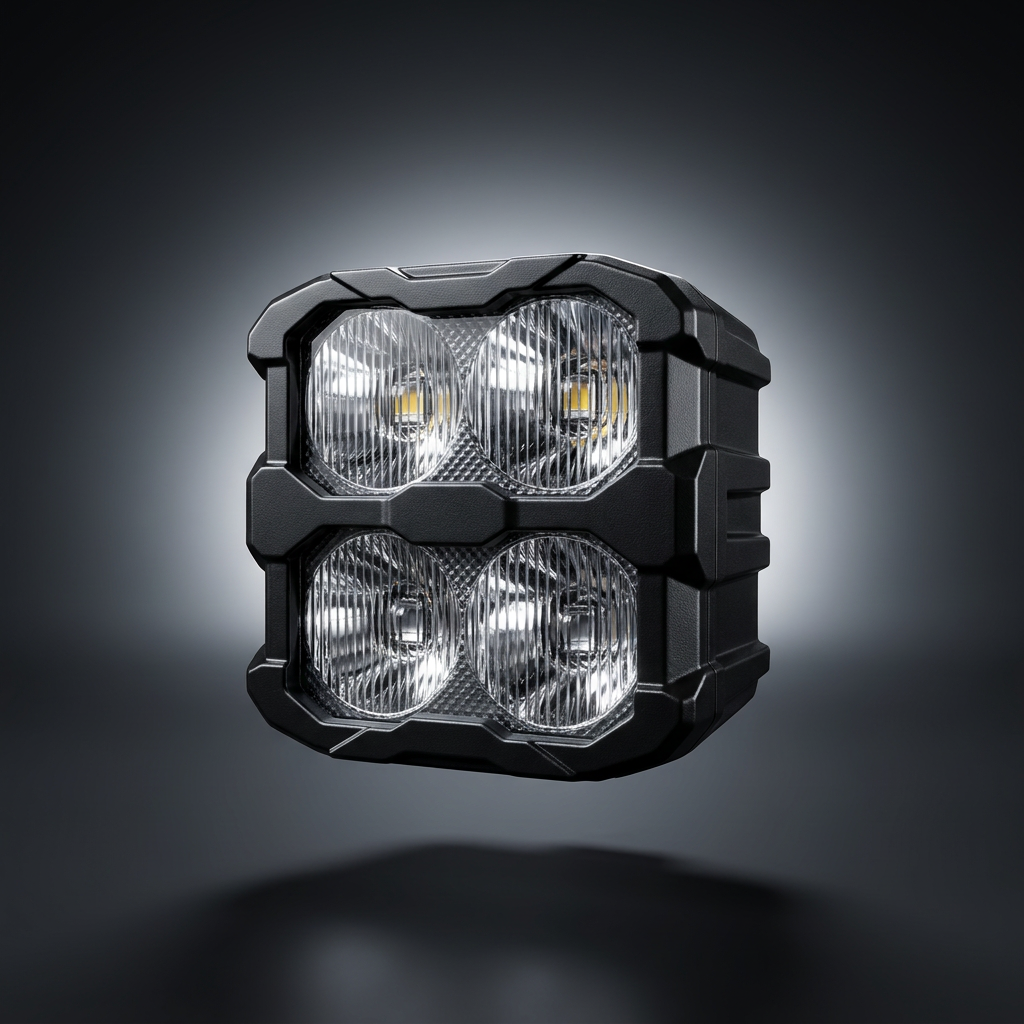

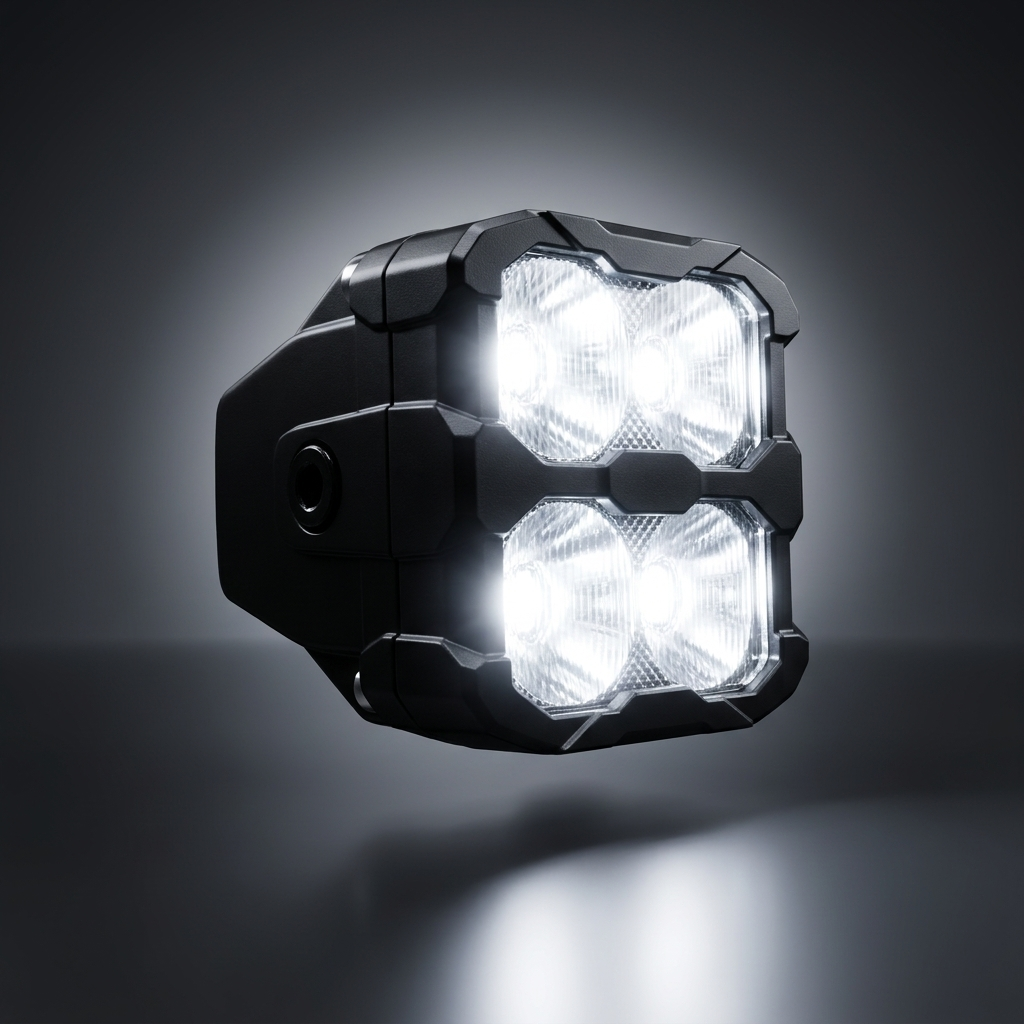

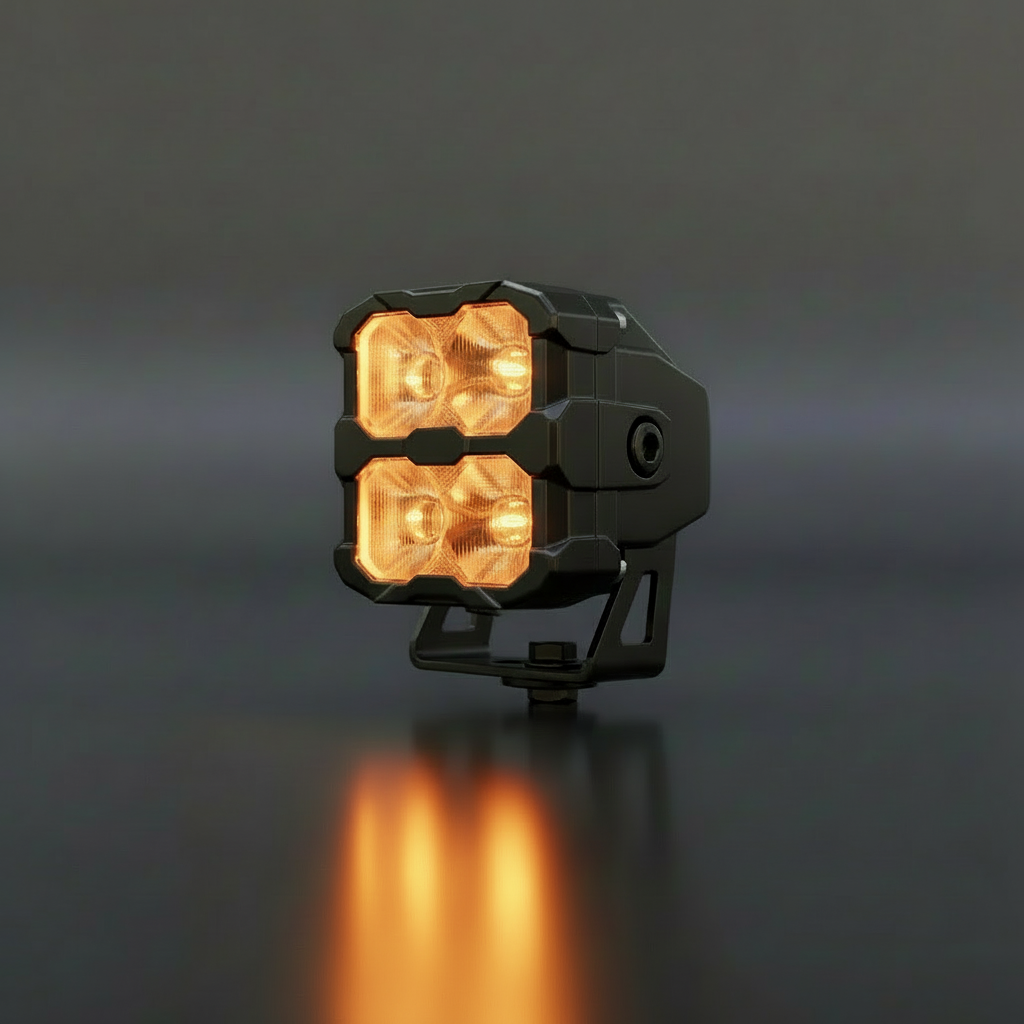

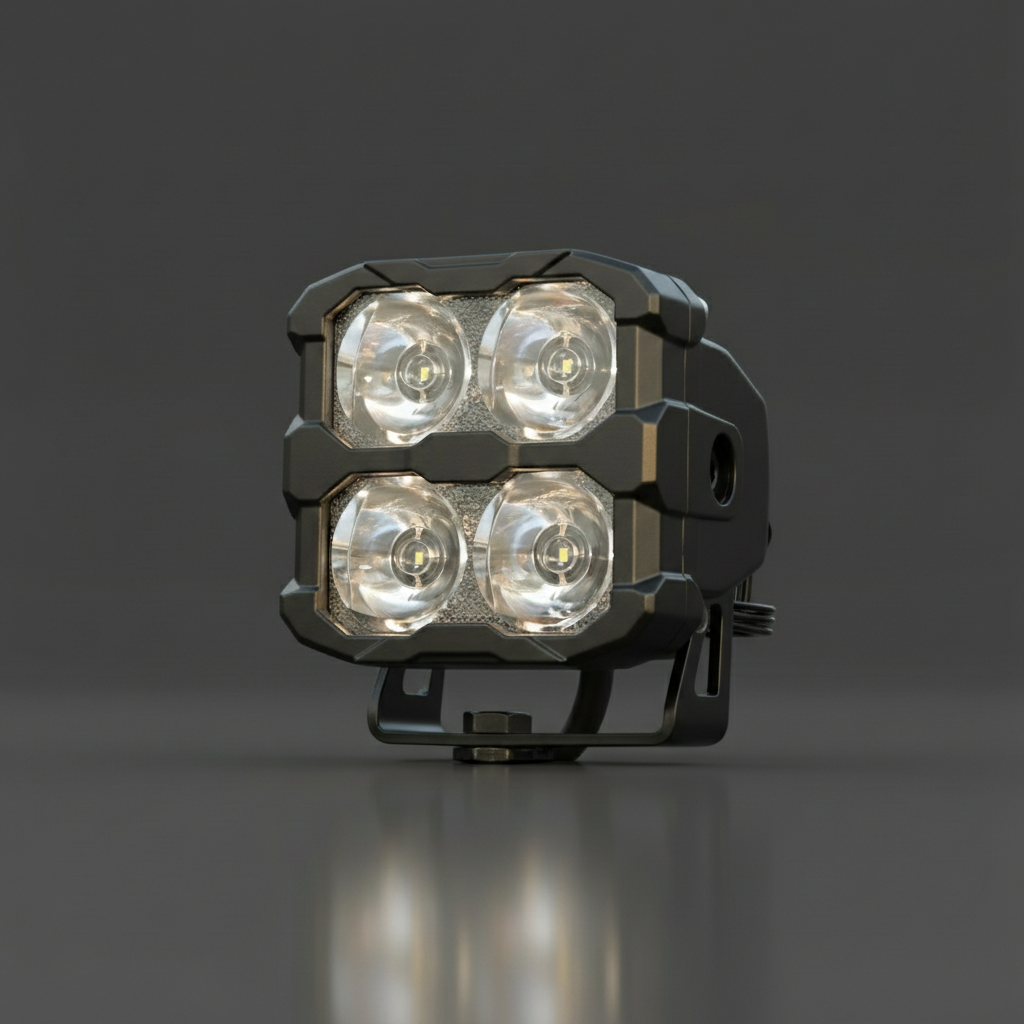

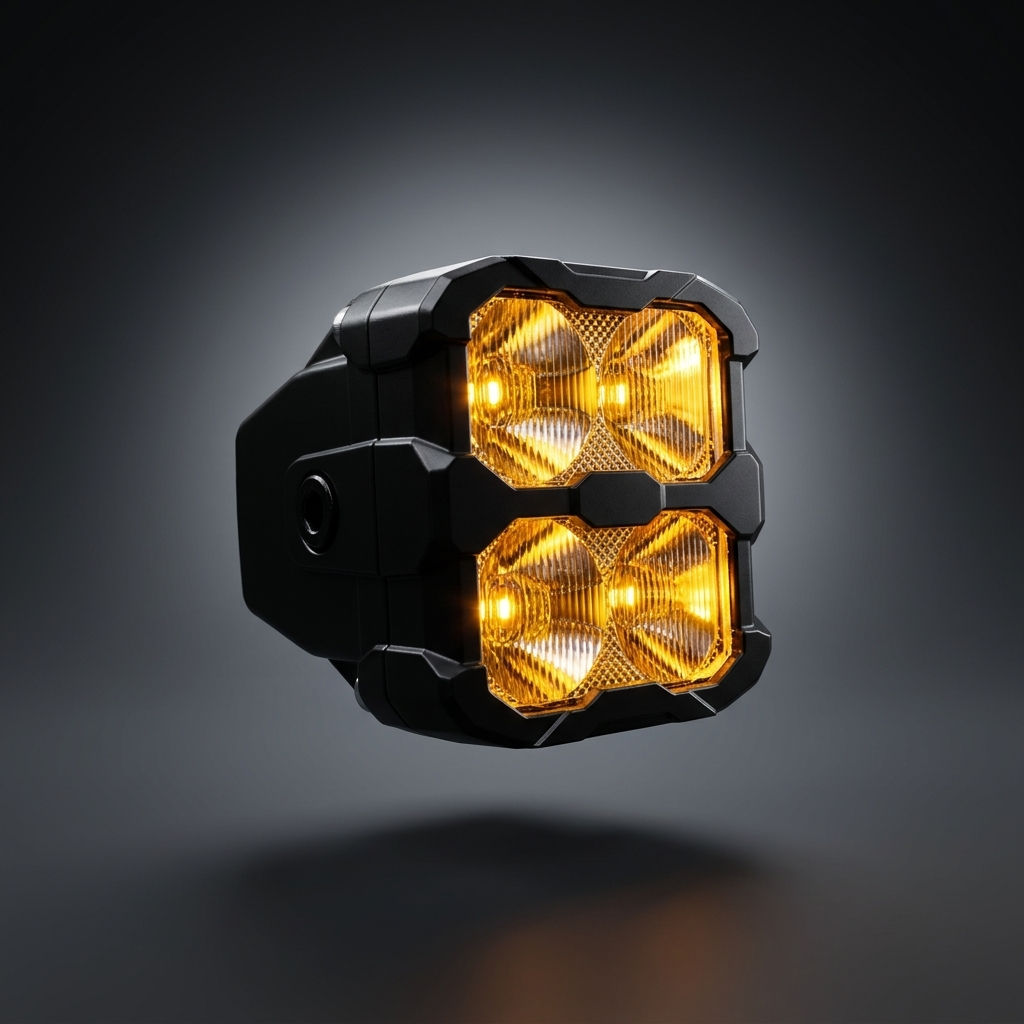

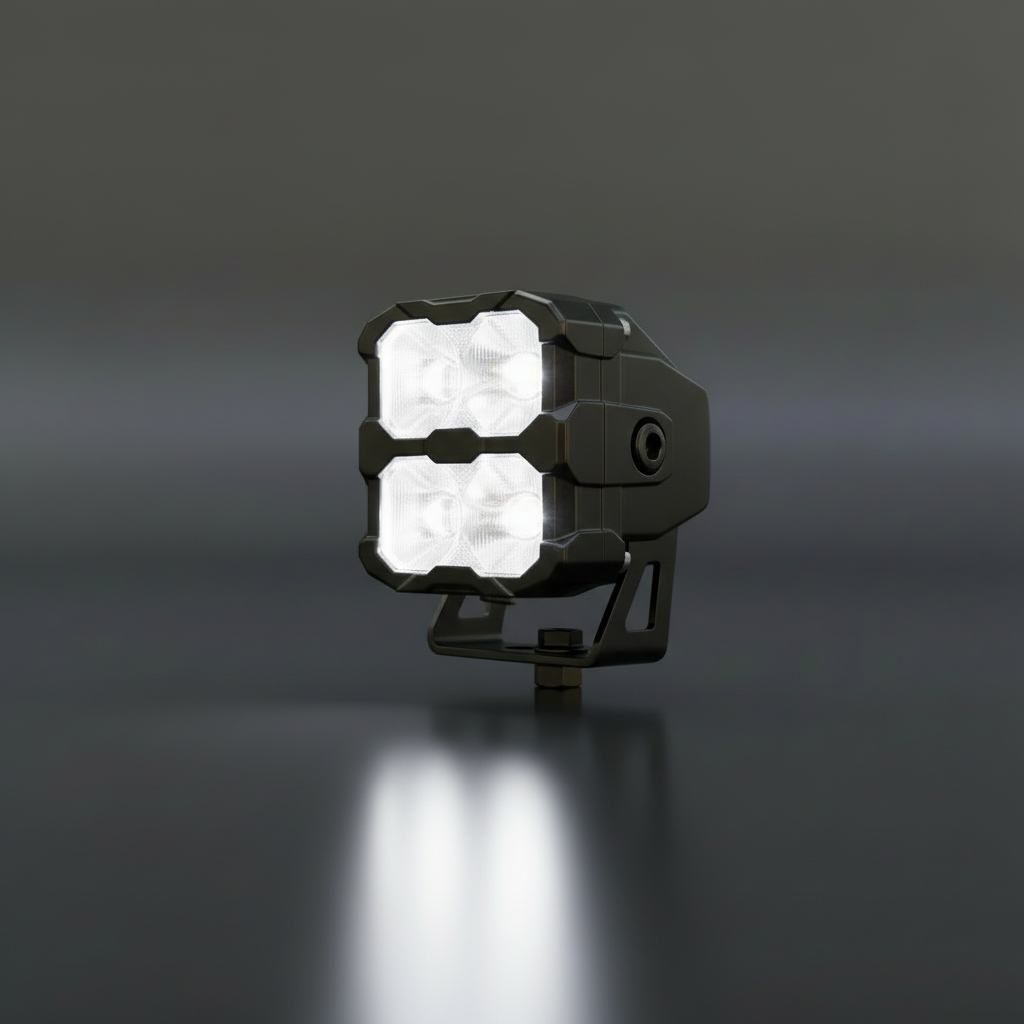

40W PRO LED Light Pod
| Beam Pattern | Driving |
| Theoretical Max Power | 40 watts |
| Actual Power | 39.2 watts |
| Voltage / Current (Main) | DC 12V / 3.3A |
| Voltage / Current (Backlight) | DC 12V / 0.07A |
| Theoretical Max Luminous Flux | 4,368 lm |
| Measured Flux (without lens) | 3,940 lm |
| Measured Flux (with lens) | 2,949 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 4 pcs |
| Product Size (L × W × D) | 3.25 × 3.15 × 2.78 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
