2024+ Lexus GX550 12in Light Bars
What's in the Box
- (2) 12in light bars
- (2) metal brackets
- All mounting hardware included
Need a shop to install it? Find a trusted installer near you →
Off-road Use Only
Bolt On, No Drilling
Lifetime Warranty
Fits: 2024–2026 Lexus GX550

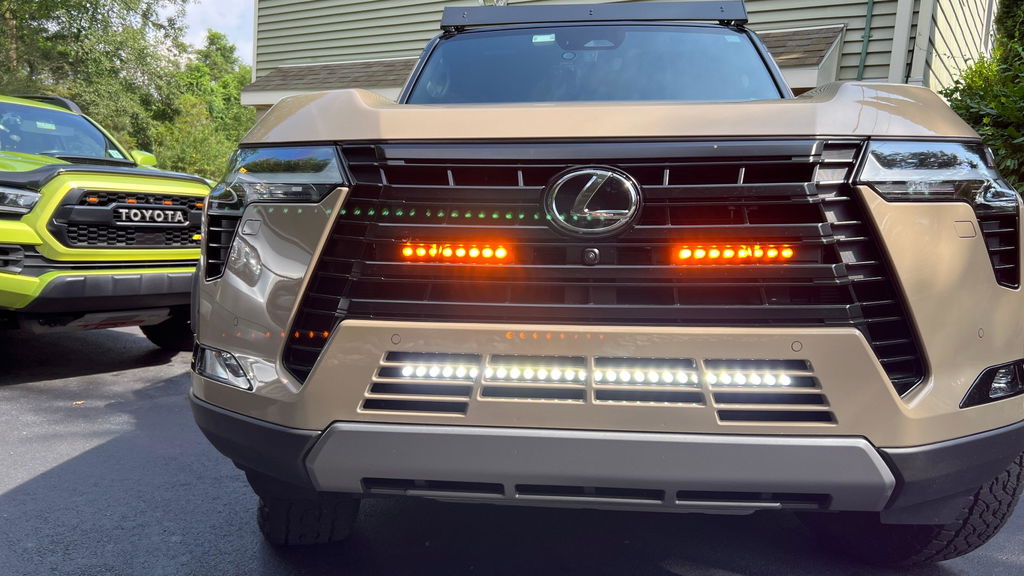

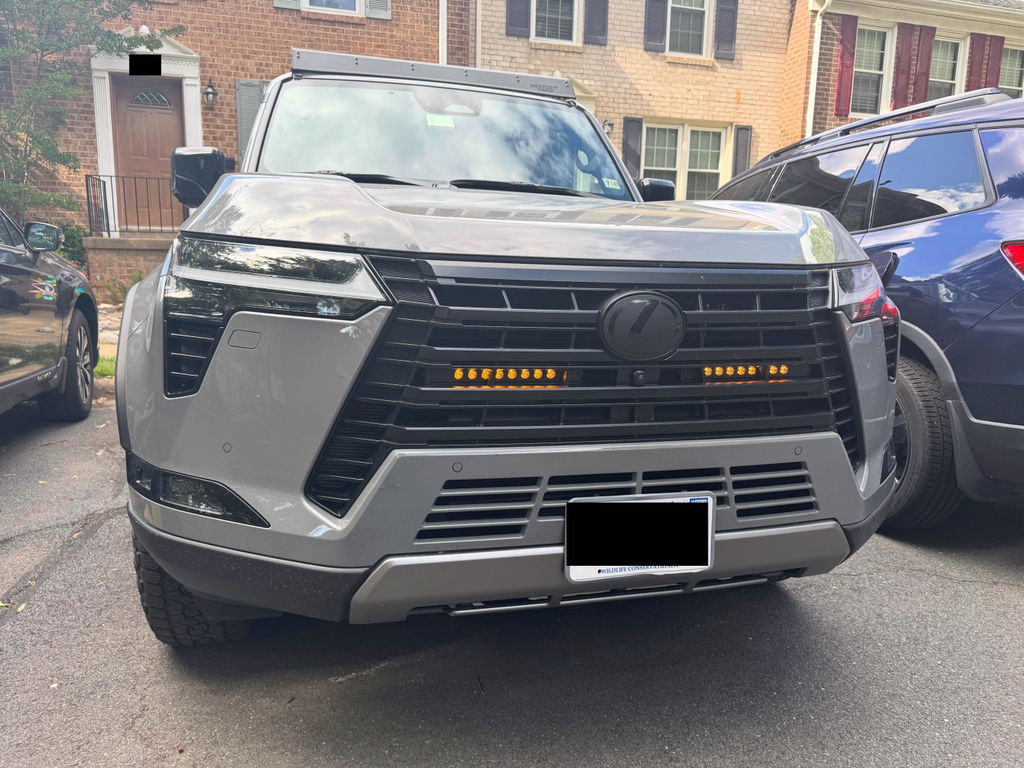

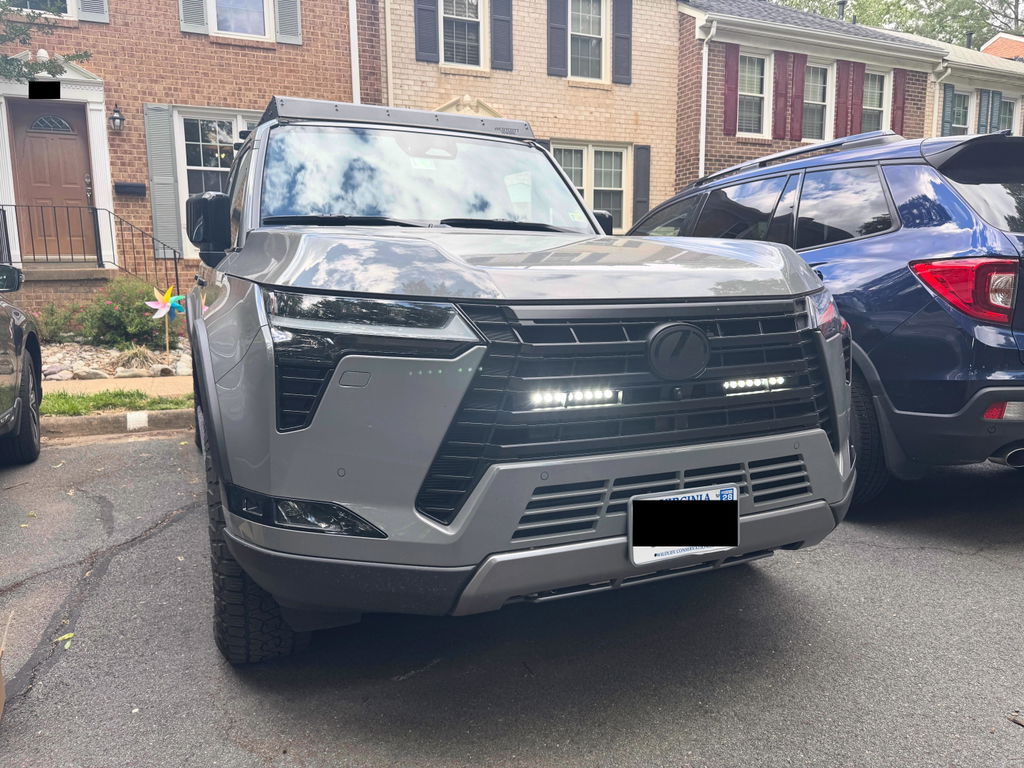

- You get (2) light bars that fit (1) on each side of grille
- Installs behind the lower grille
- Must remove whole front grille for installation
- DOES NOT affect cooling of the radiator
- DOES NOT interfere with active shutters
- Metal bracket is powder coated black
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
BUILD QUALITY:
- Reflector-style optics with CREE XT-E LED chips for consistent, efficient output
- Housing is UV black powder coated to protect against fading, corrosion, and weather exposure
- Rated for a 50,000 hour lifespan
12in SLIM Light Bar
| Specification | White w/ Amber DRL | White | Amber |
|---|---|---|---|
| Beam Pattern | Spot & Flood | Spot & Flood | Spot & Flood |
| Theoretical Max Power | 40 watts | 40 watts | 32 watts |
| Actual Power | 25 watts | 25 watts | 17 watts |
| Voltage / Current (Main) | DC 12V / 2.1A | DC 12V / 2.1A | DC 12V / 1.4A |
| Voltage / Current (Backlight) | DC 12V / 0.11A | — | — |
| Theoretical Max Luminous Flux | 4,680 lm | 4,680 lm | — |
| Measured Flux (without lens) | 2,920 lm | 2,920 lm | — |
| Measured Flux (with lens) | 2,408 lm | 2,408 lm | — |
| LED Type | CREE XTE | CREE XTE | CREE XP-E2 Amber |
| Color Temperature | 6000K | 6000K | — |
| Number of LEDs | 8 pcs | 8 pcs | 8 pcs |
| Product Size (L × W × D) | 11.42 × 1.65 × 0.71 in | 11.42 × 1.65 × 0.71 in | 11.42 × 1.65 × 0.71 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
HOW TO INSTALL?
HOW TO WIRE?
LIGHT OUTPUT
