2024+ Ineos Grenadier 30in Light Bar
What's in the Box
- (1) 30in light bar PRO
- (2) metal brackets
- All mounting hardware included
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty
Fits: 2024-2026 Ineos Grenadier
Trims: Base, Trialmaster, Fieldmaster, Quartermaster

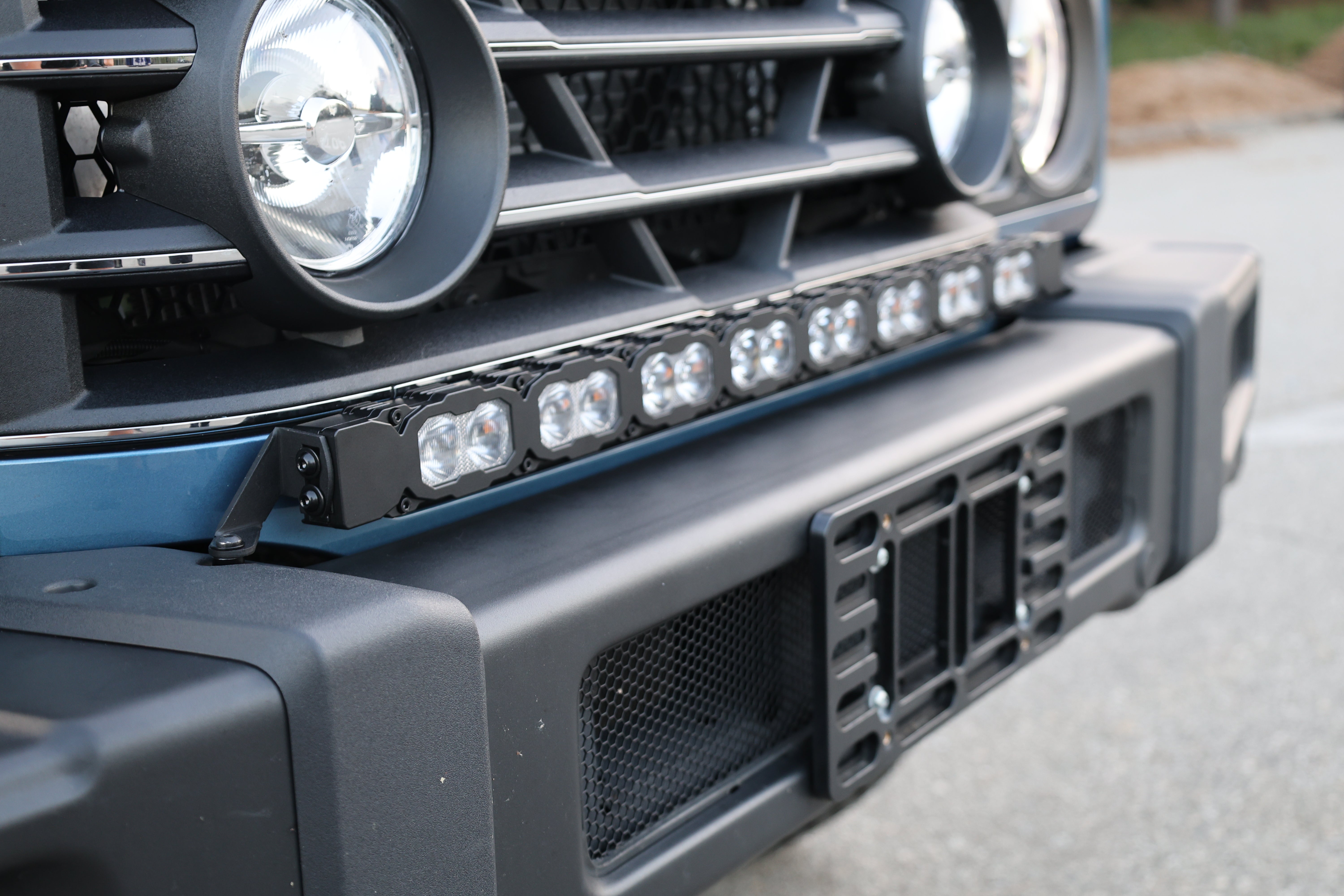

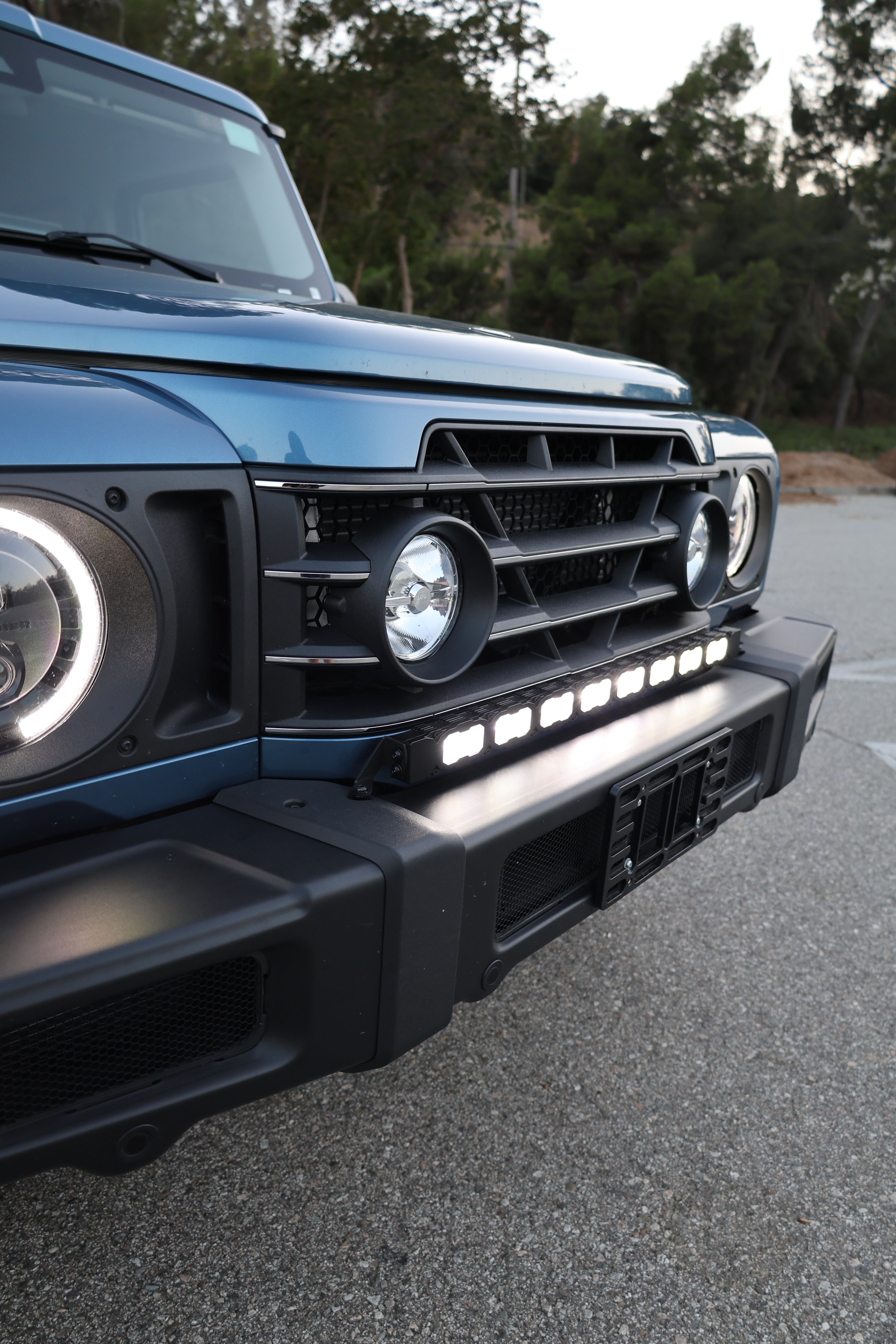

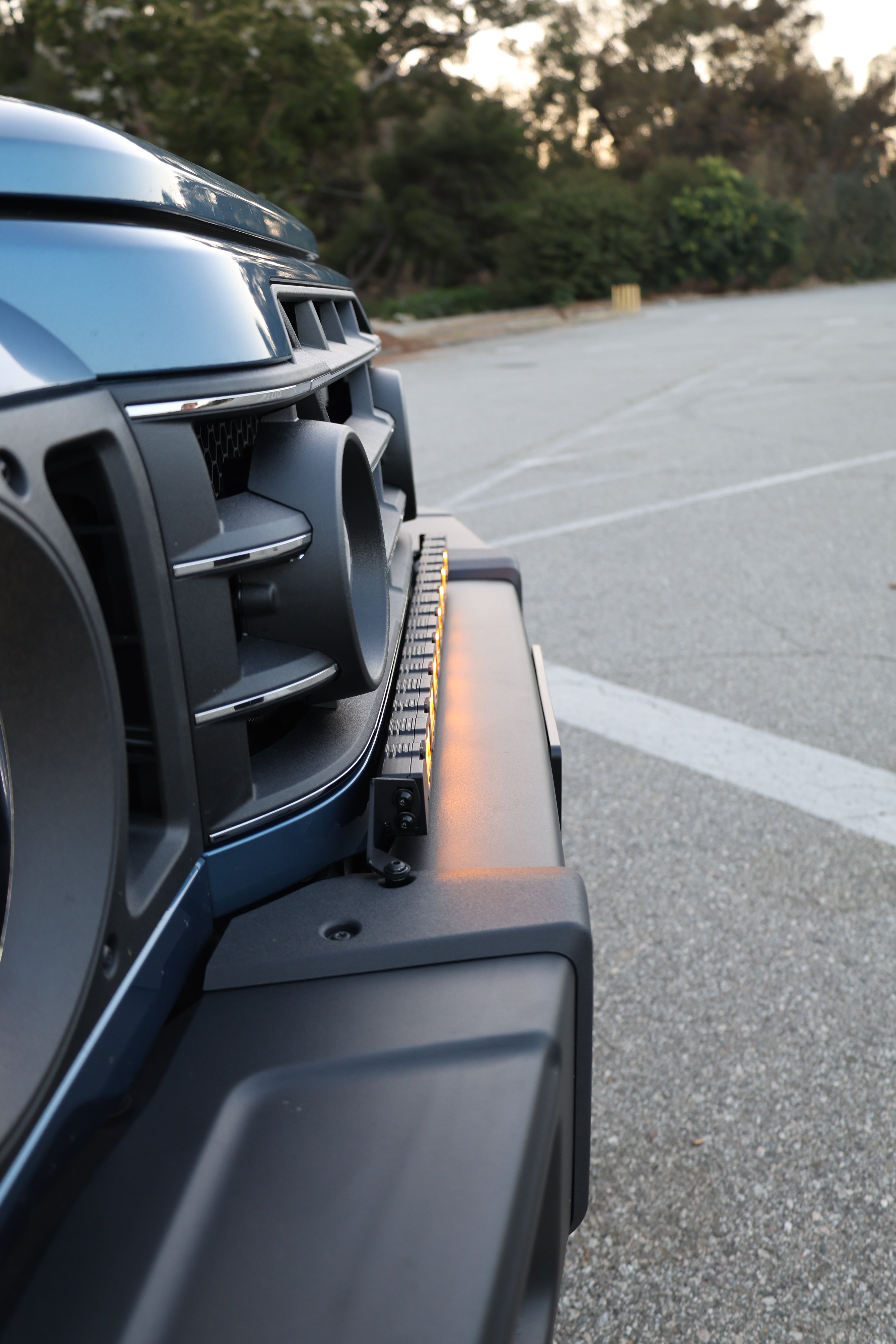

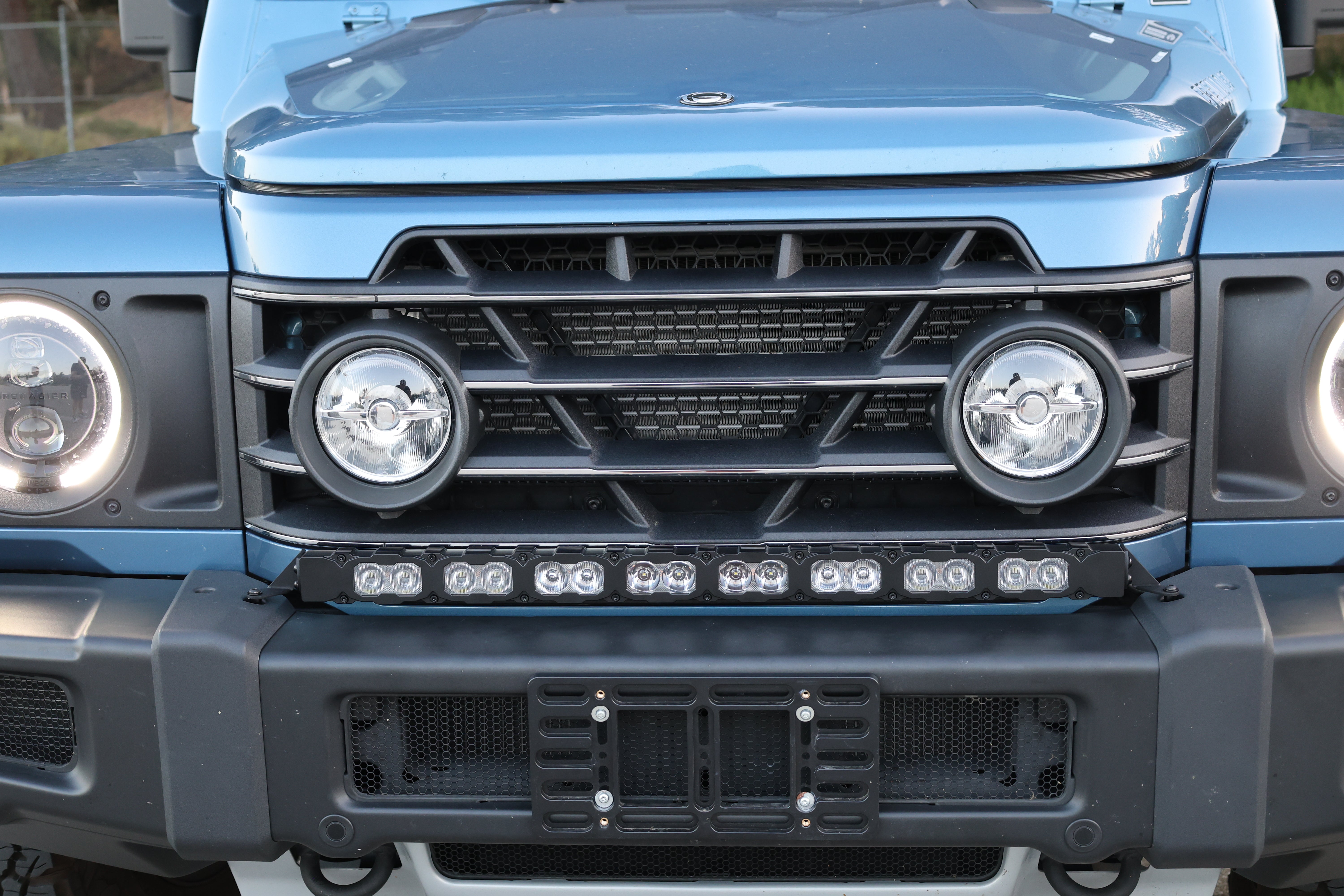

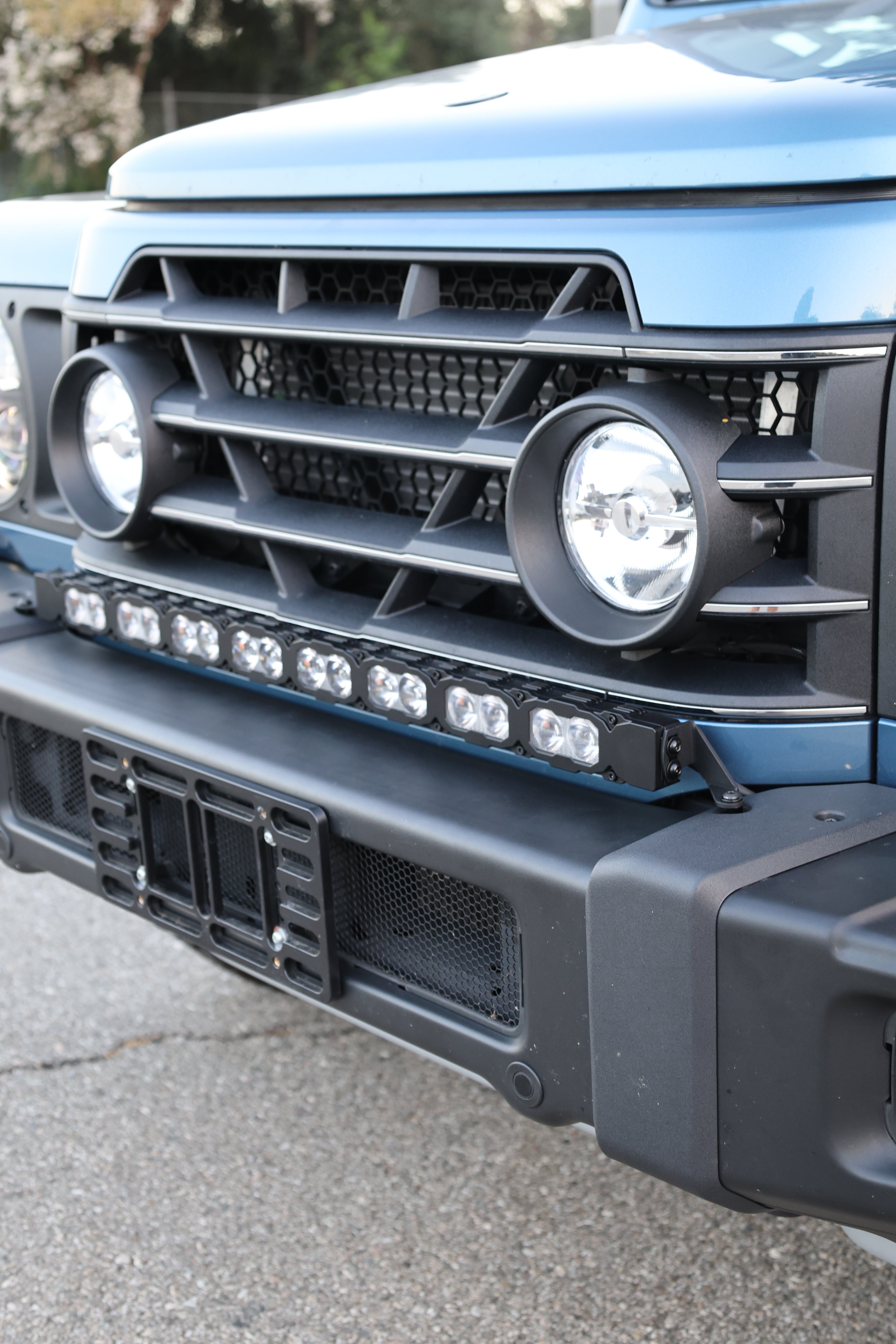

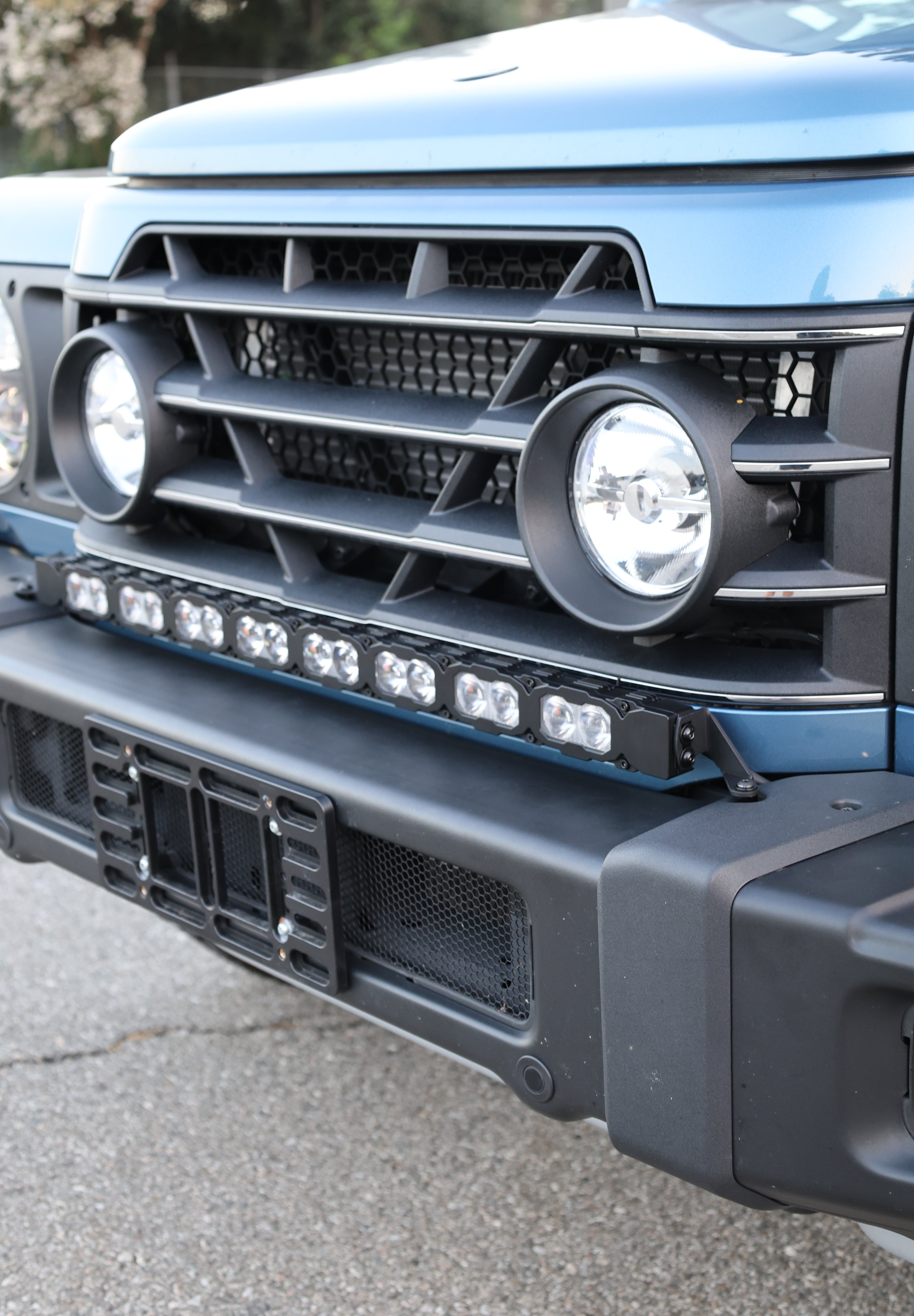

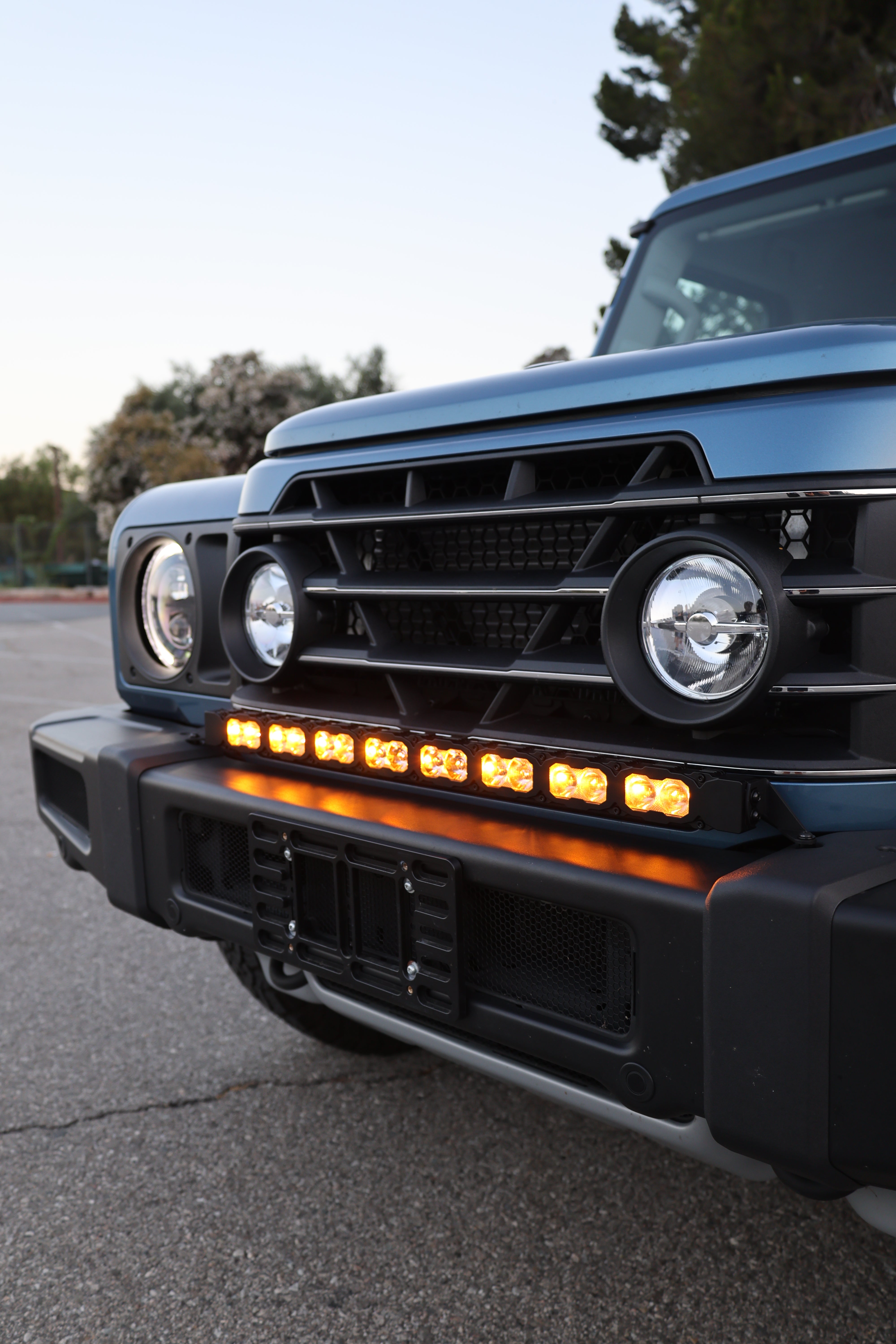

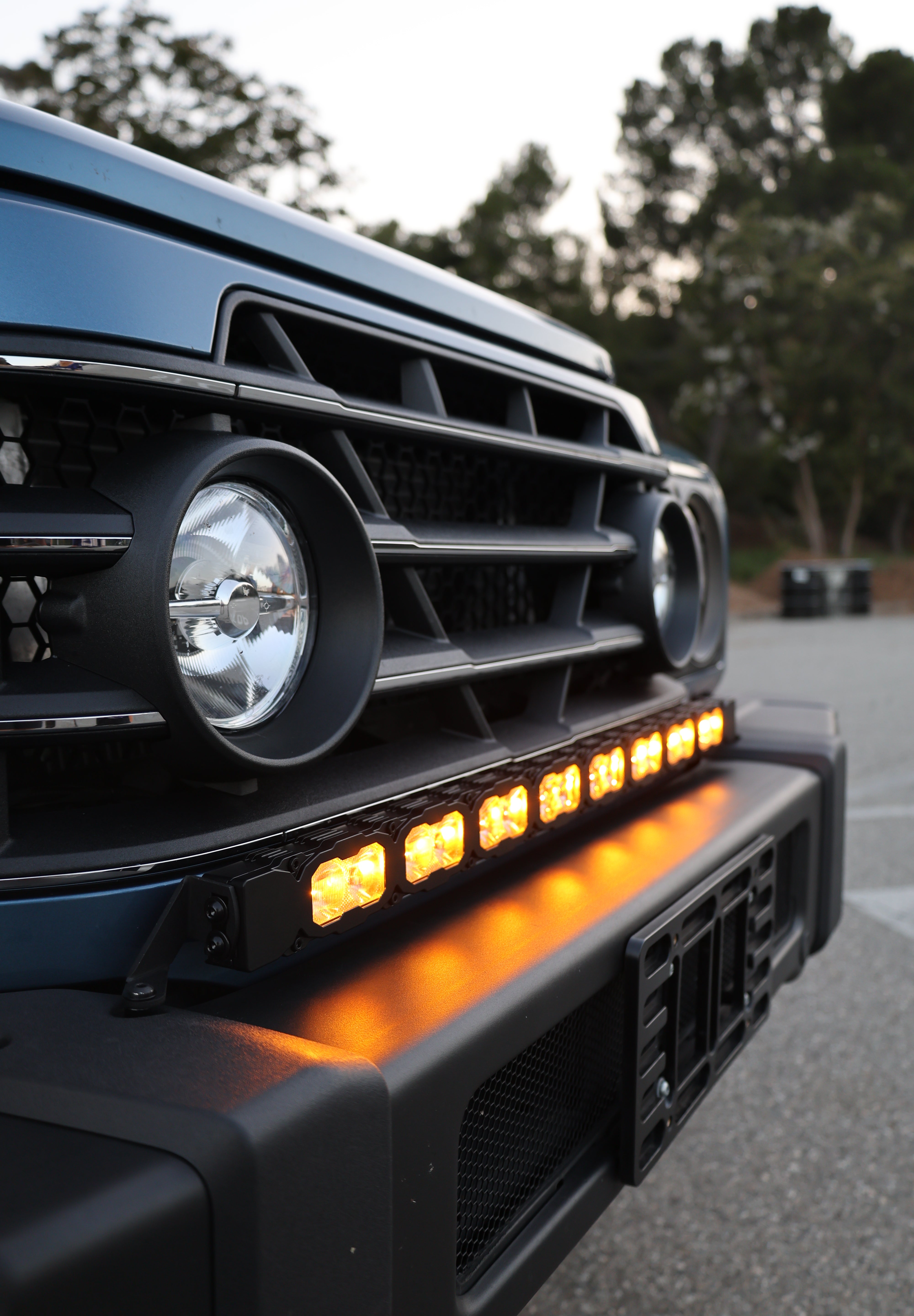

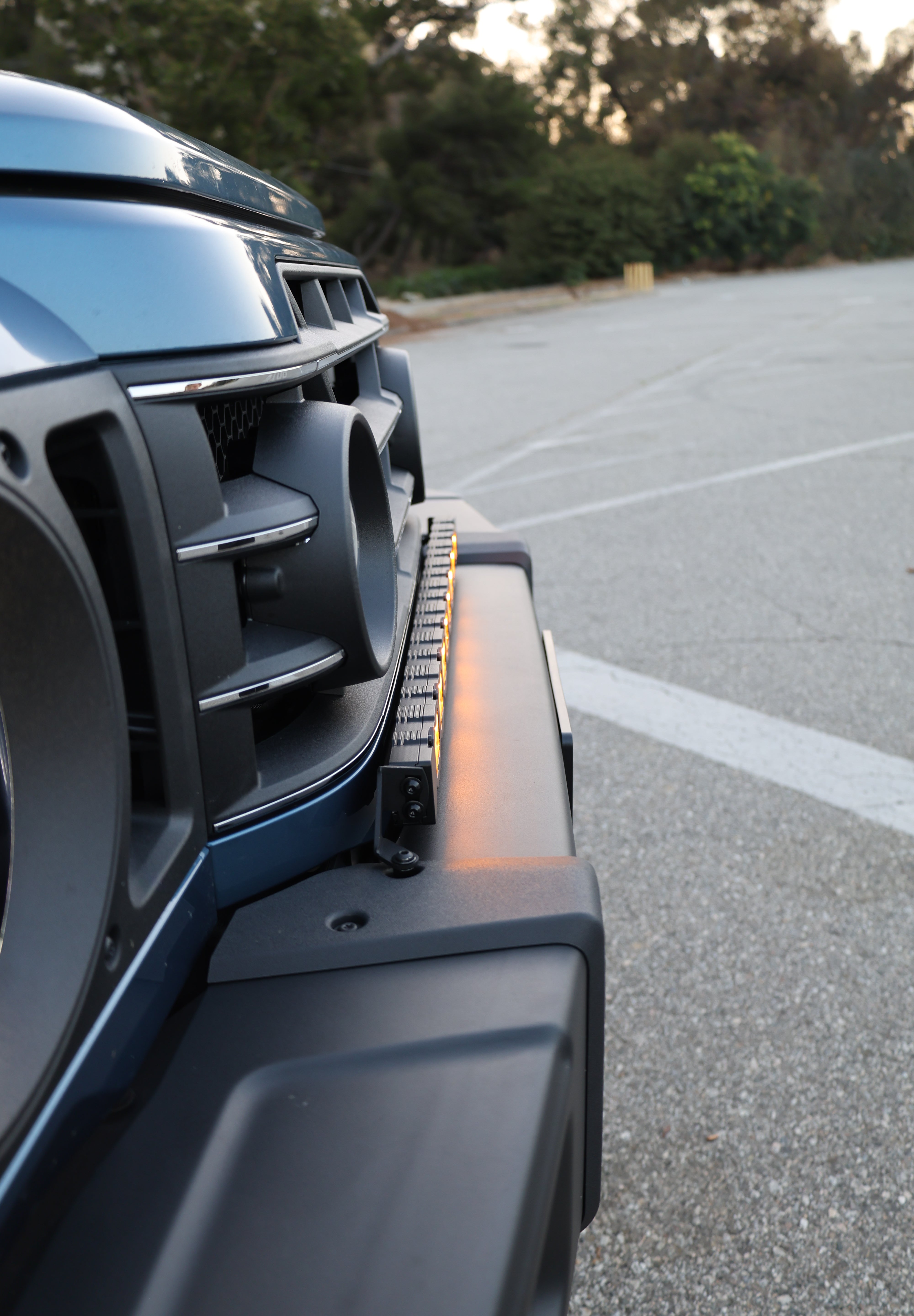

- Stays close to the bumper for a sleek, built-in look
- Metal bracket is powder coated black

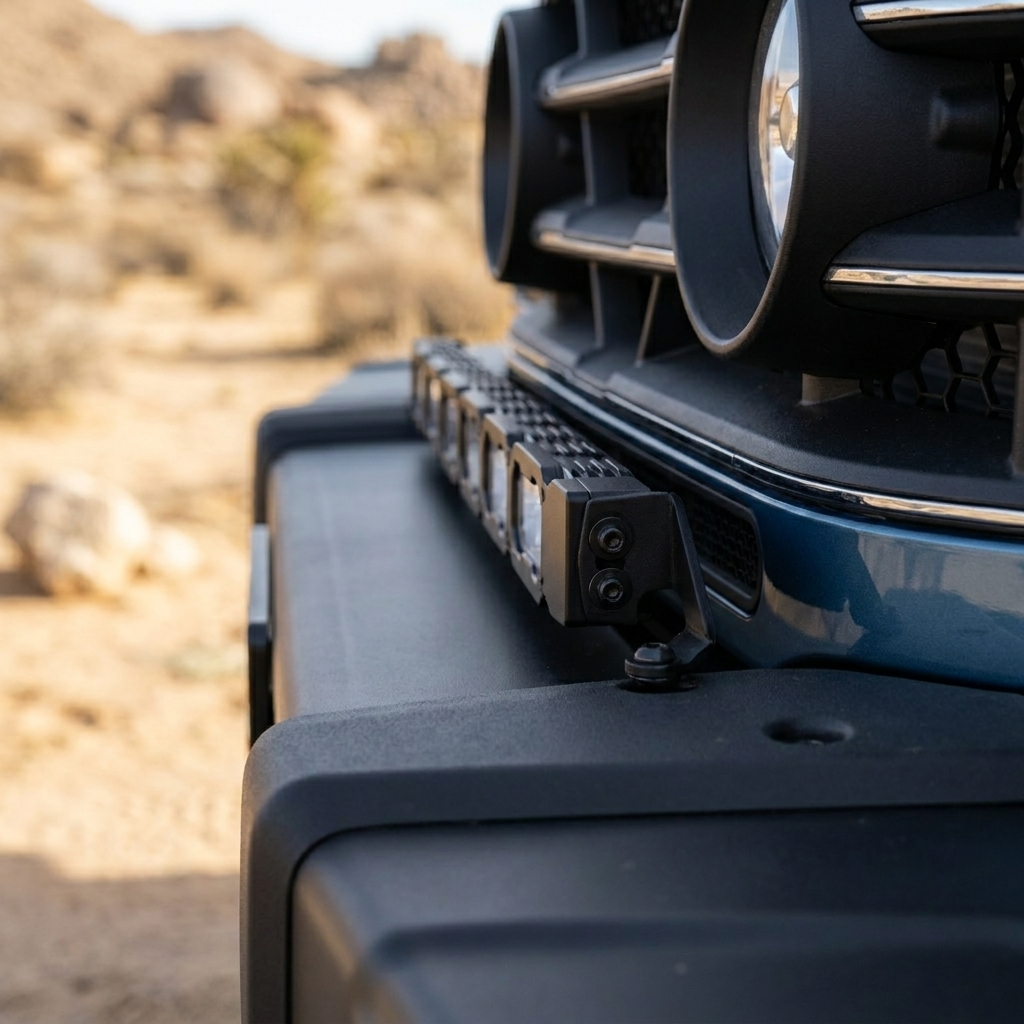

- Easy install right on top of the bumper
- Don't need to remove bumper or grille
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware

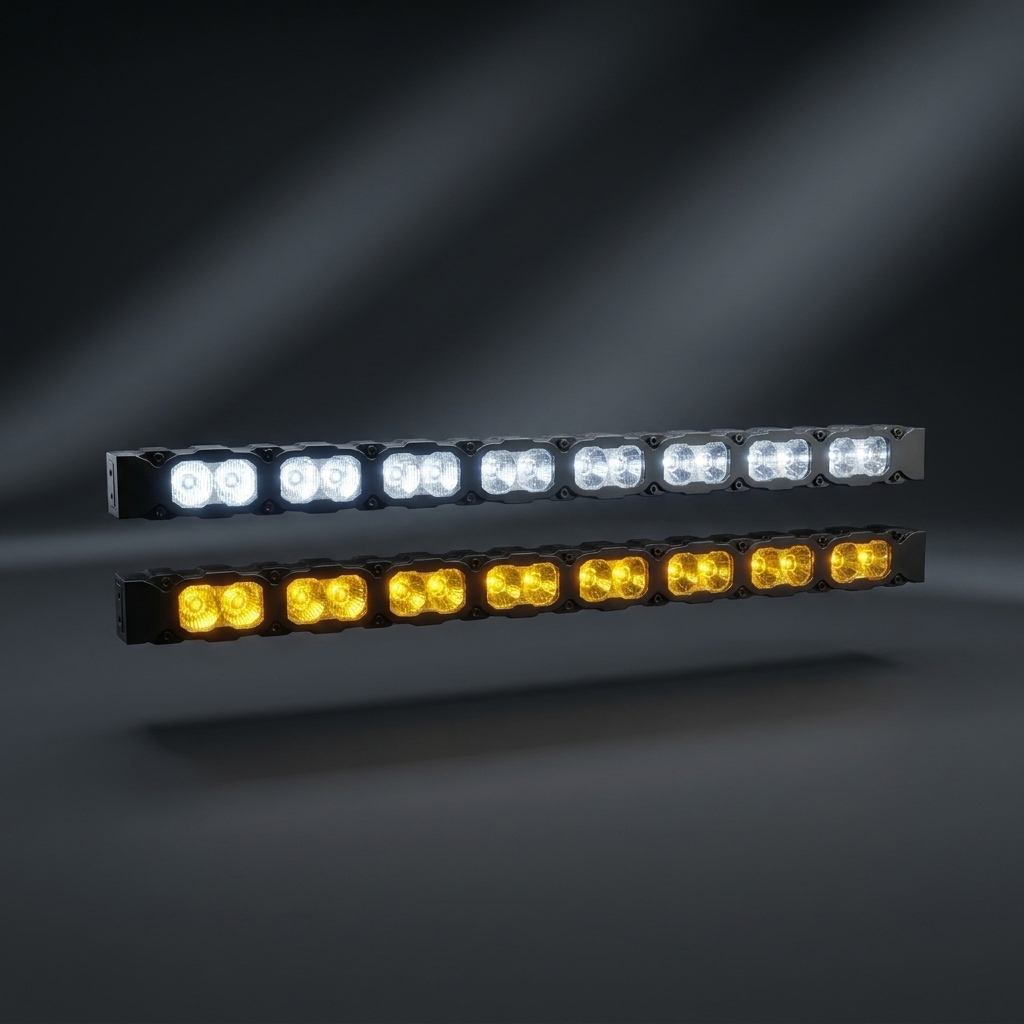

CHOOSE LIGHT OUTPUT COLOR:

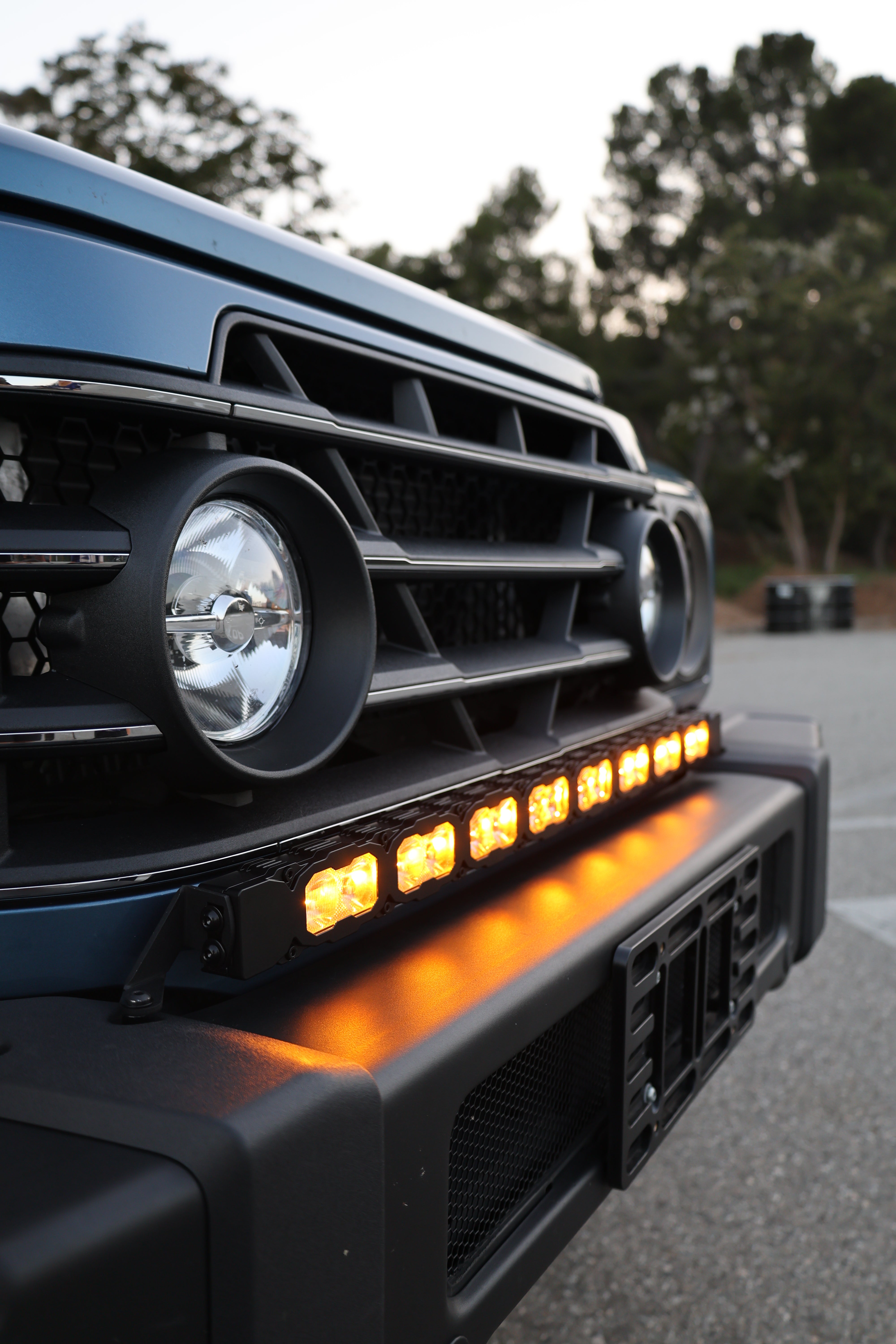

Each PRO bar is dual-color — a main beam plus a soft amber DRL (daytime running light) backglow.

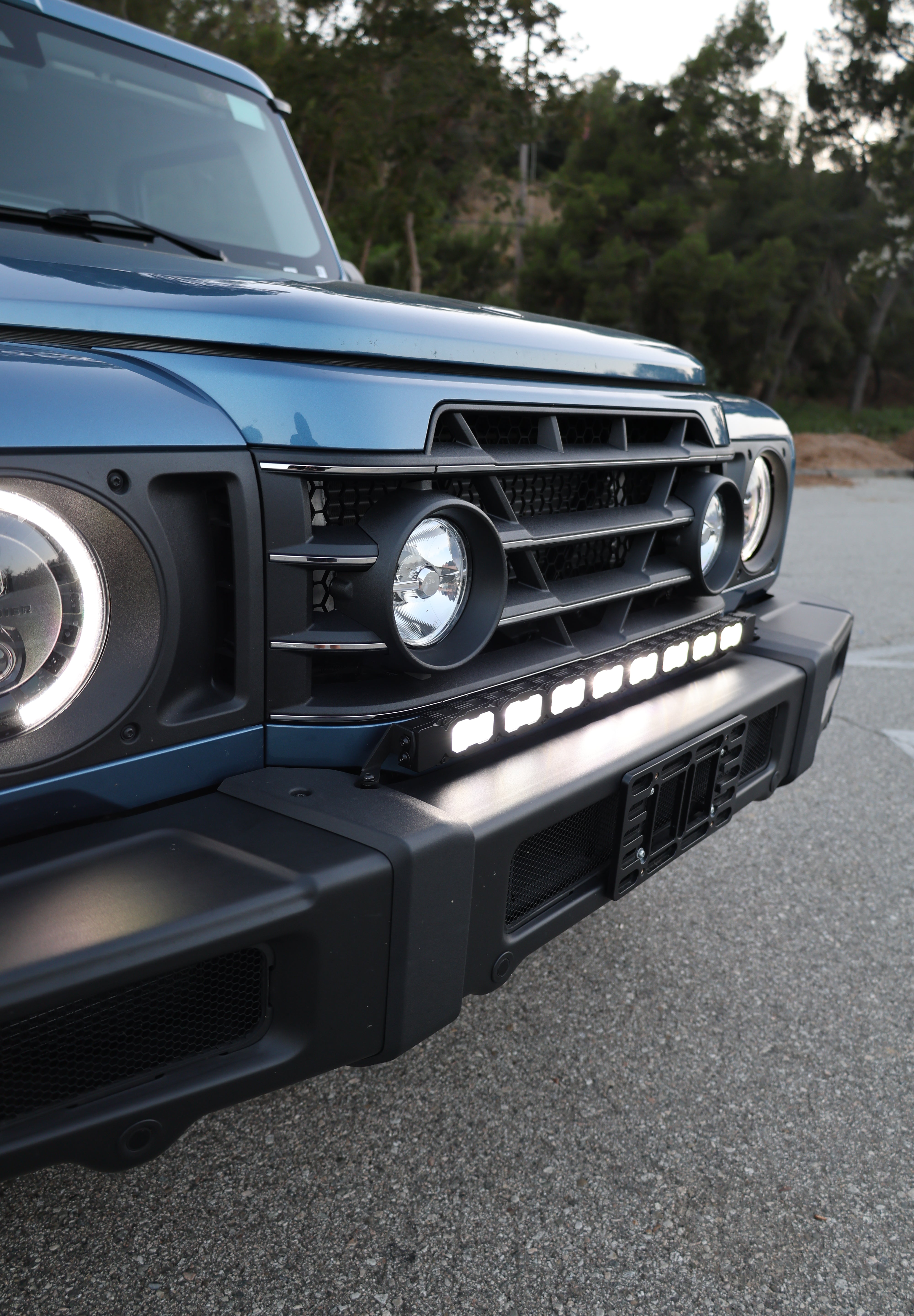

Option 1 — White + Amber DRL

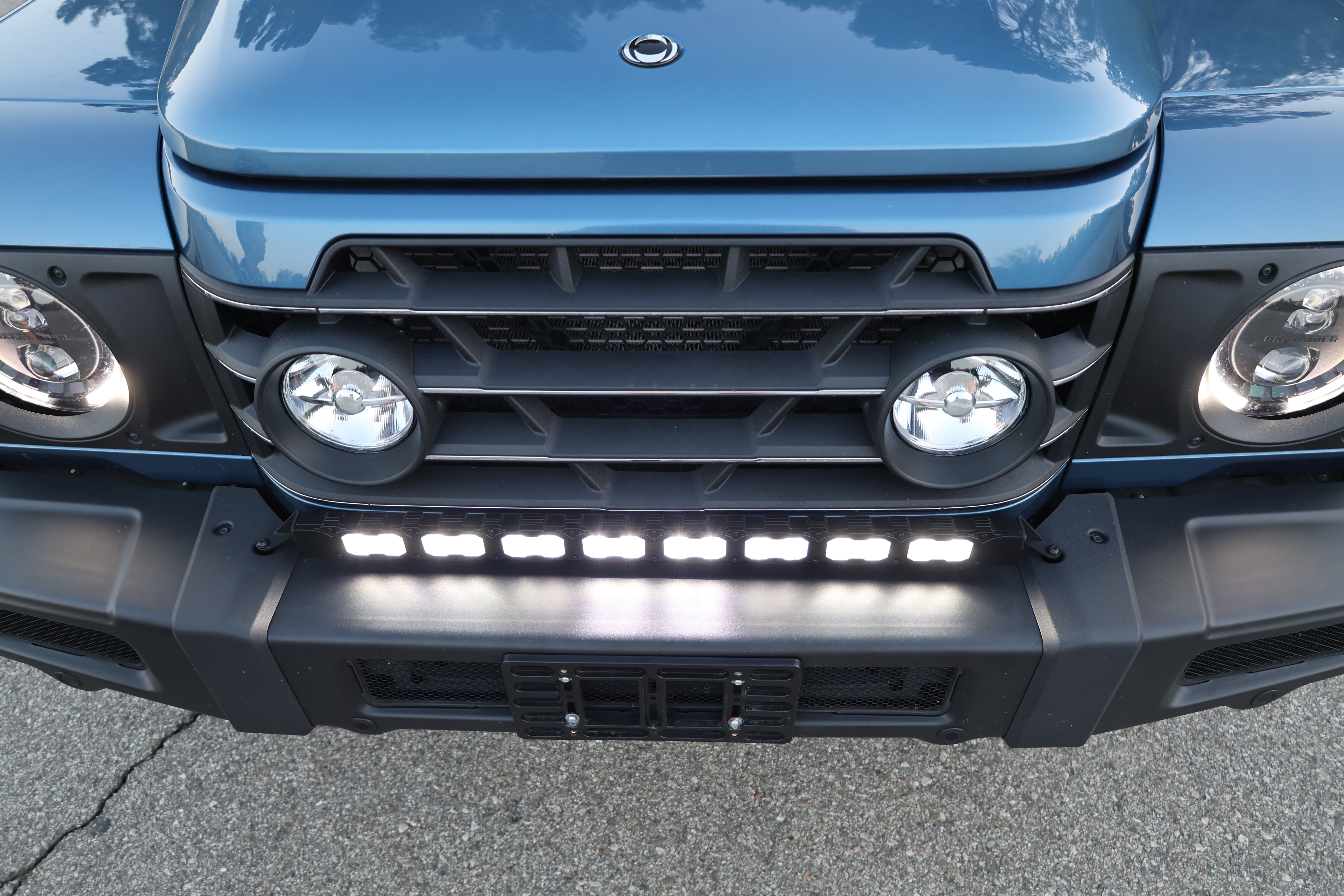

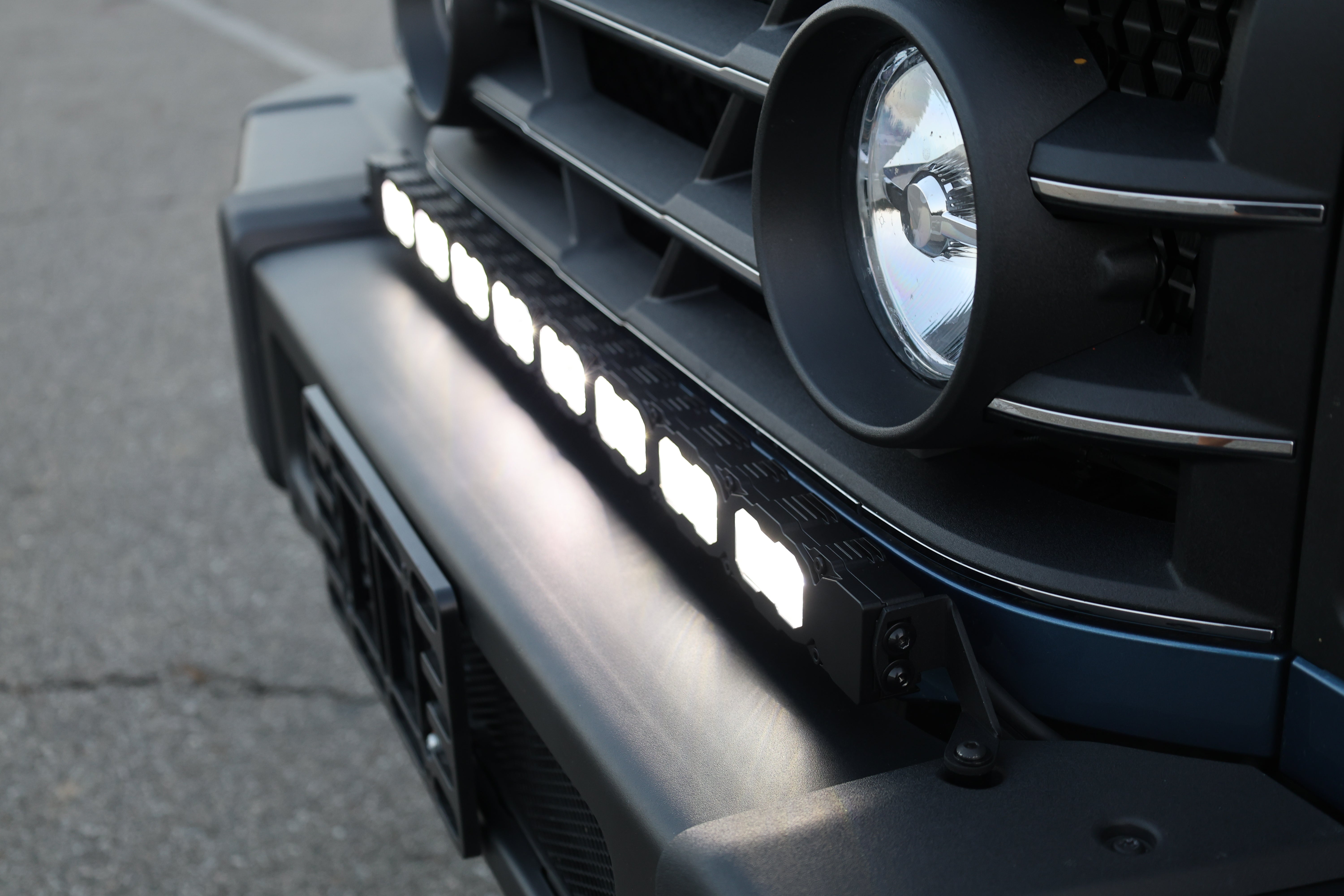

- White LED — Super bright, crisp white beam with plenty of light for any adventure. Off-road use only — it blinds oncoming traffic and isn't street-legal.
- Amber DRL — Purely cosmetic amber glow. Street-safe — gives off little light and won't blind oncoming traffic, so you can run it on the road.

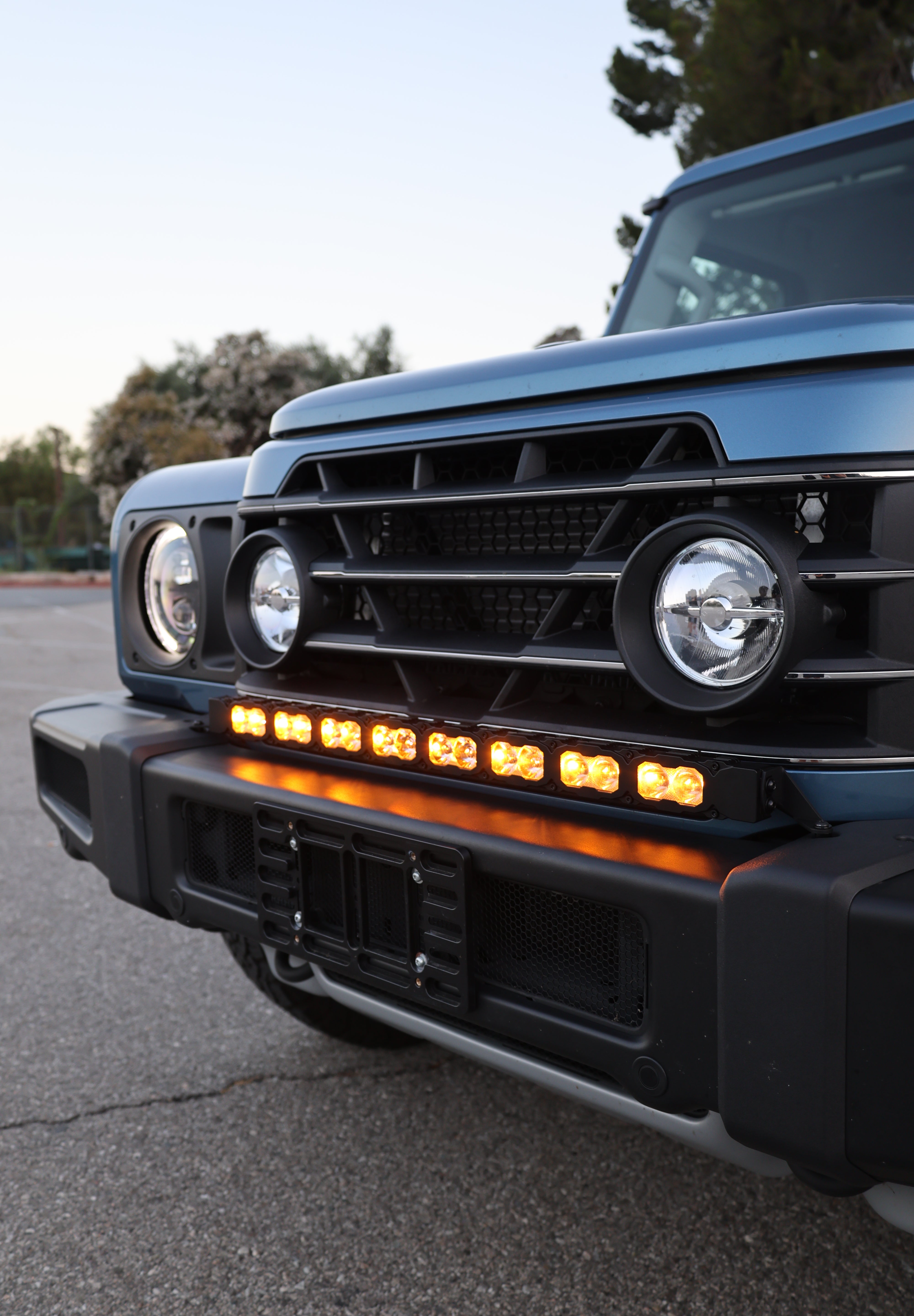

Option 2 — Yellow + Amber DRL
- Yellow LED — Cuts through dust, fog, snow, and rain better than white light. Ideal for poor driving conditions. Off-road use only.
- Amber DRL — Same cosmetic amber glow. Street-safe — won't blind oncoming traffic.
- Combo Pattern: combined spot and driving optics offer a balance between distance and width
- Uses a TIR (Total Internal Reflection) lens, which is different from our regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance

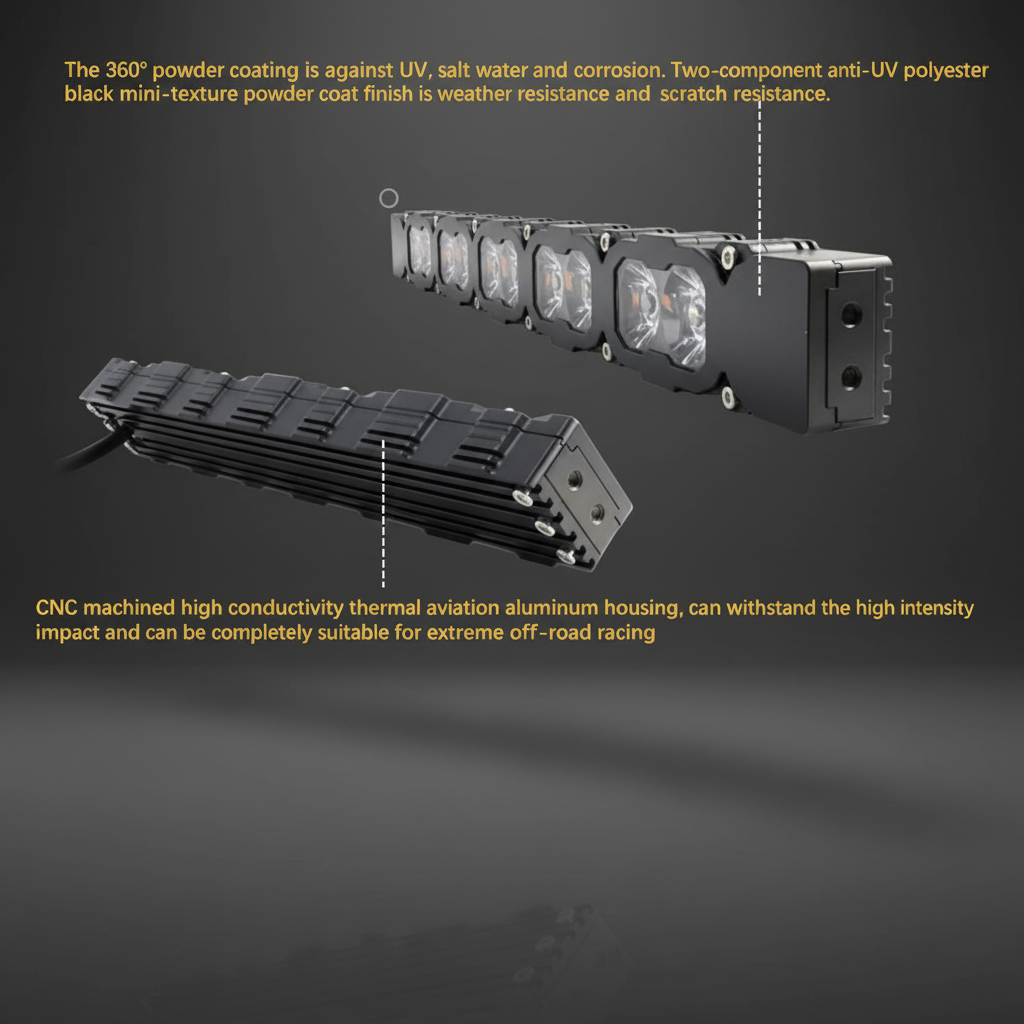

- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
30in PRO Light Bar
| Beam Pattern | Spot & Driving |
| Theoretical Max Power | 160 watts |
| Actual Power | 90 watts |
| Voltage / Current (Main) | DC 12V / 7.5A |
| Voltage / Current (Backlight) | DC 12V / 0.19A |
| Theoretical Max Luminous Flux | 17,472 lm |
| Measured Flux (without lens) | 11,072 lm |
| Measured Flux (with clear lens) | 8,806 lm |
| Measured Flux (with yellow lens) | 6,846 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 16 pcs |
| Product Size (L × W × D) | 29.53 × 1.89 × 1.00 in |
